Wireless Rechargeable Red/Infrared Light Therapy Ankle Brace

View Compliance Docs

Overview

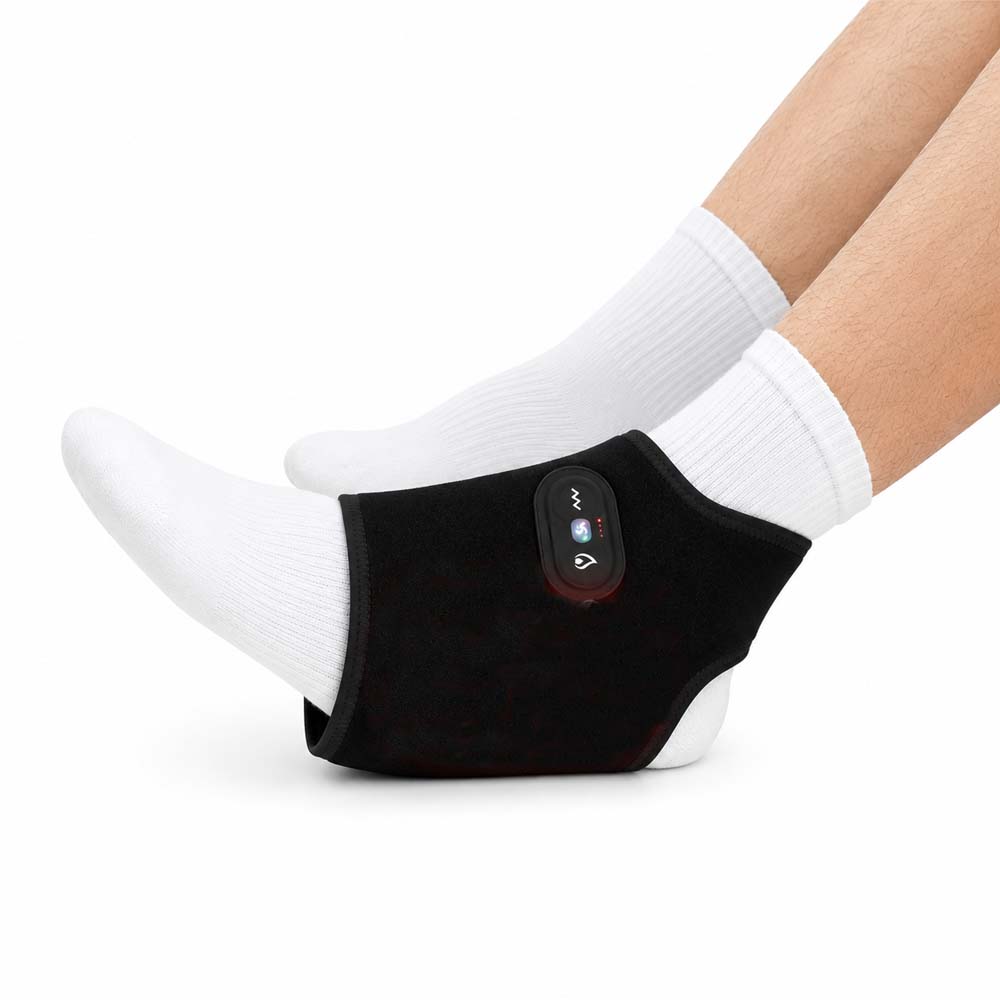

The XHHJW00001 Smart Red and Infrared Light Therapy Ankle Brace is a wearable, non-invasive recovery device that integrates light therapy, heat application, vibration massage, and voice control. Designed to address the needs for localized circulation and recovery in the ankle joint and surrounding soft tissues, it offers a home-based rehabilitation solution that combines clinical-grade photobiomodulation with physical relaxation.

The core mechanism of this infrared therapy ankle brace is photobiomodulation (PBM). When light of specific wavelengths is absorbed by cellular mitochondria, it promotes the production of ATP (adenosine triphosphate), which in turn activates cellular metabolism, inhibits pain signaling, and reduces local inflammatory responses.

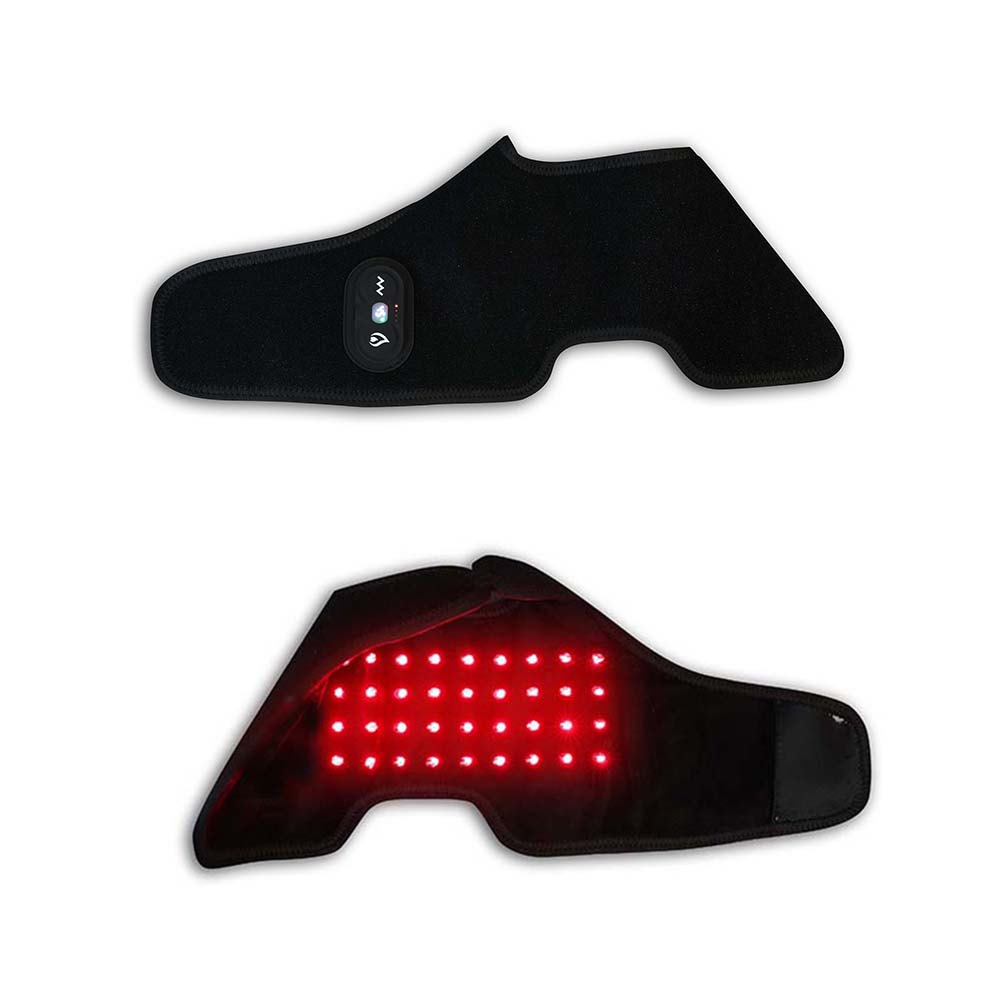

The XHHJW00001 Infrared Therapy Ankle Brace features a flexible, form-fitting design inspired by biomimetic contours. It incorporates 36 triple-core LEDs (totaling 108 individual chips) capable of simultaneously emitting 660nm visible red light and 850nm near-infrared light. Equipped with a 2600mAh rechargeable lithium battery, the device allows for wireless, wearable use. Users can switch between light therapy, heat therapy, and massage modes via dual physical buttons or voice commands. It is well-suited for post-exercise recovery, alleviating ankle stiffness, and supporting daily circulation and maintenance.

Working Principle & Benefits

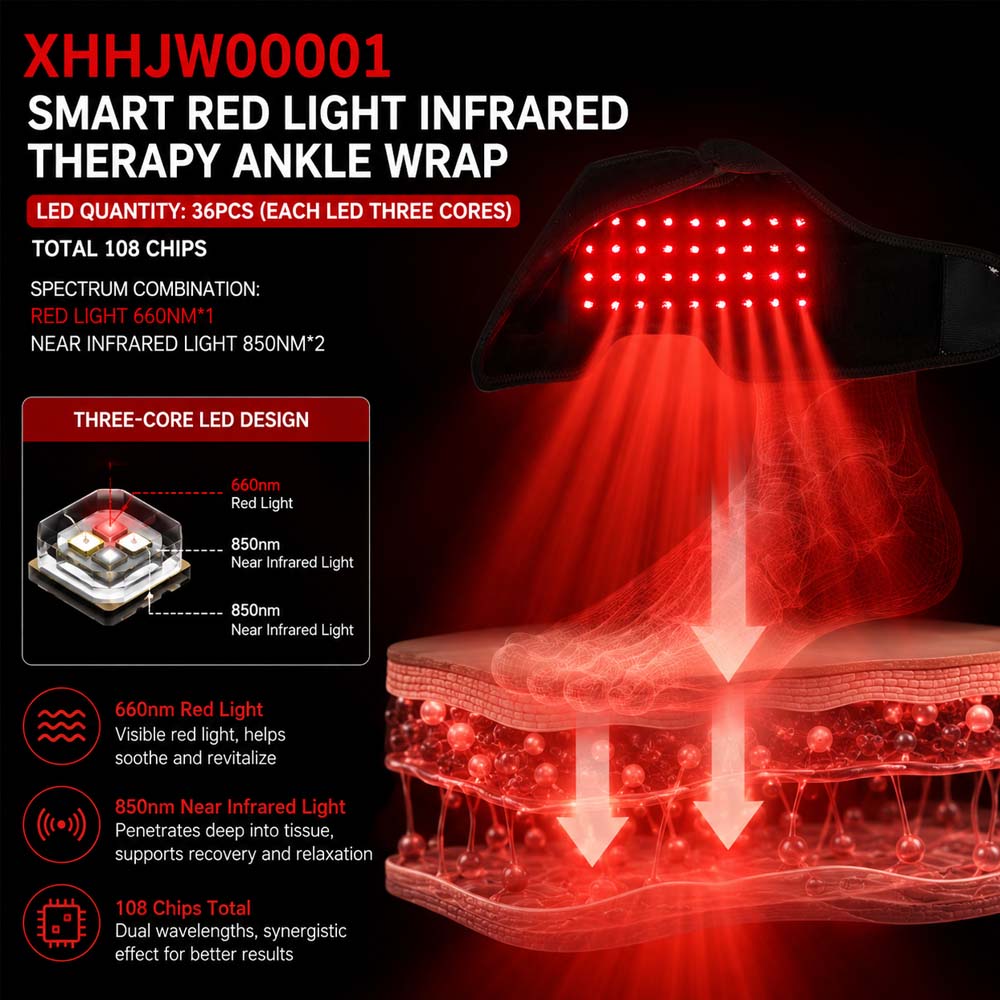

Working Principle: Dual-Wavelength Photobiomodulation (PBM)

660nm Red Light: Targets the skin and superficial tissues; promotes epidermal repair, provides anti-inflammatory effects, and soothes surface-level discomfort.

850nm Near-Infrared (NIR) Light: Reaches muscles, joints, and deep-seated nerves; improves microcirculation, alleviates deep-tissue pain and inflammation, and supports tissue repair.

Research indicates that the combined application of red light and near-infrared light produces a synergistic effect on cell proliferation, differentiation, and tissue repair—outperforming the use of either wavelength alone. 850nm near-infrared light can penetrate subcutaneous fat and connective tissues, reaching the deep structures of the ankle joint with minimal energy loss; this is particularly crucial for the recovery of ligaments and tendons in the ankle region.

Daily Maintenance and Recovery Support

Ankle Sprains and Ligament Rehabilitation: Red and near-infrared light are used to accelerate tissue repair and reduce swelling following ankle sprains.

Post-Exercise Muscle Soreness and Fatigue: Helps alleviate delayed onset muscle soreness (DOMS) and supports efficient recovery after physical activity.

Chronic Ankle Stiffness and Joint Discomfort: Improves local microcirculation, easing joint stiffness and discomfort caused by daily wear and tear.

Chronic Achilles Tendon and Ankle Strain: Provides a non-invasive, supportive therapeutic option for Achilles tendon conditions and chronic tendon issues.

Ankle and Foot Circulation Support (After Prolonged Standing or Sitting): Combines heat therapy and massage to promote local blood and lymphatic circulation, helping to relieve feelings of heaviness and fatigue.

Who Can Use the Wireless Wearable Ankle Brace?

Sports enthusiasts and amateur athletes: For ankle recovery and relief from soreness after activities such as running, basketball, or soccer.

Individuals recovering from ankle sprains: To be used as an at-home supplementary therapeutic aid, under the guidance of a physician or physical therapist.

Professionals who spend long periods standing or walking: For addressing foot and ankle fatigue and supporting circulation—ideal for teachers, healthcare workers, retail staff, etc.

Middle-aged and older adults: For daily relief from chronic ankle stiffness or mild joint discomfort.

Home care and travel: Featuring a wireless, portable design, it is perfect for use at home, in the office, or while staying at a hotel.

Working Principle: Dual-Wavelength Photobiomodulation (PBM)

Who Can Use the Wireless Wearable Ankle Brace?

01/03

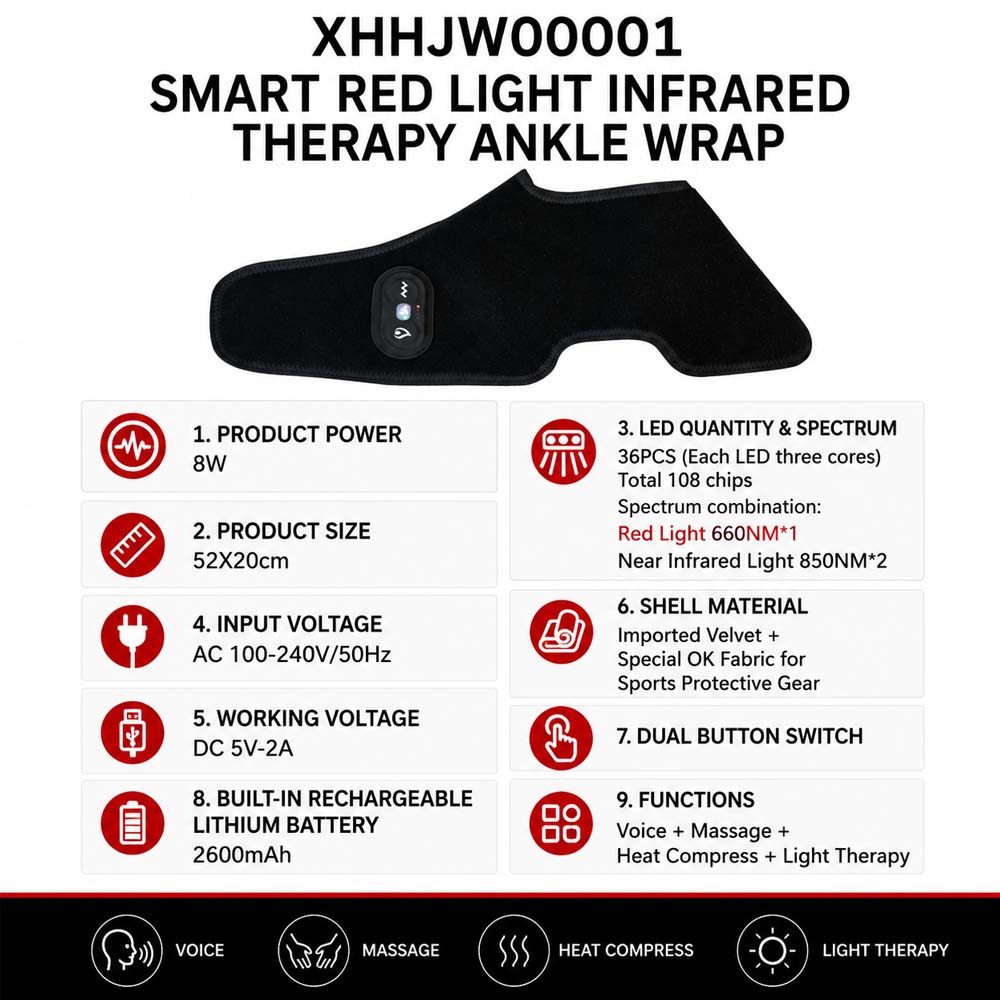

Specification

Parameter	Specification
Model	XHHJW00001
Product Type	Red/Infrared Light Therapy Ankle Brace
LED Quantity	36 triple-core LEDs
LED Chip Quantity	3 Chips Per LED,Total 108 Chips
Light Spectrum	660nm red light × 1 + 850nm near-infrared light × 2

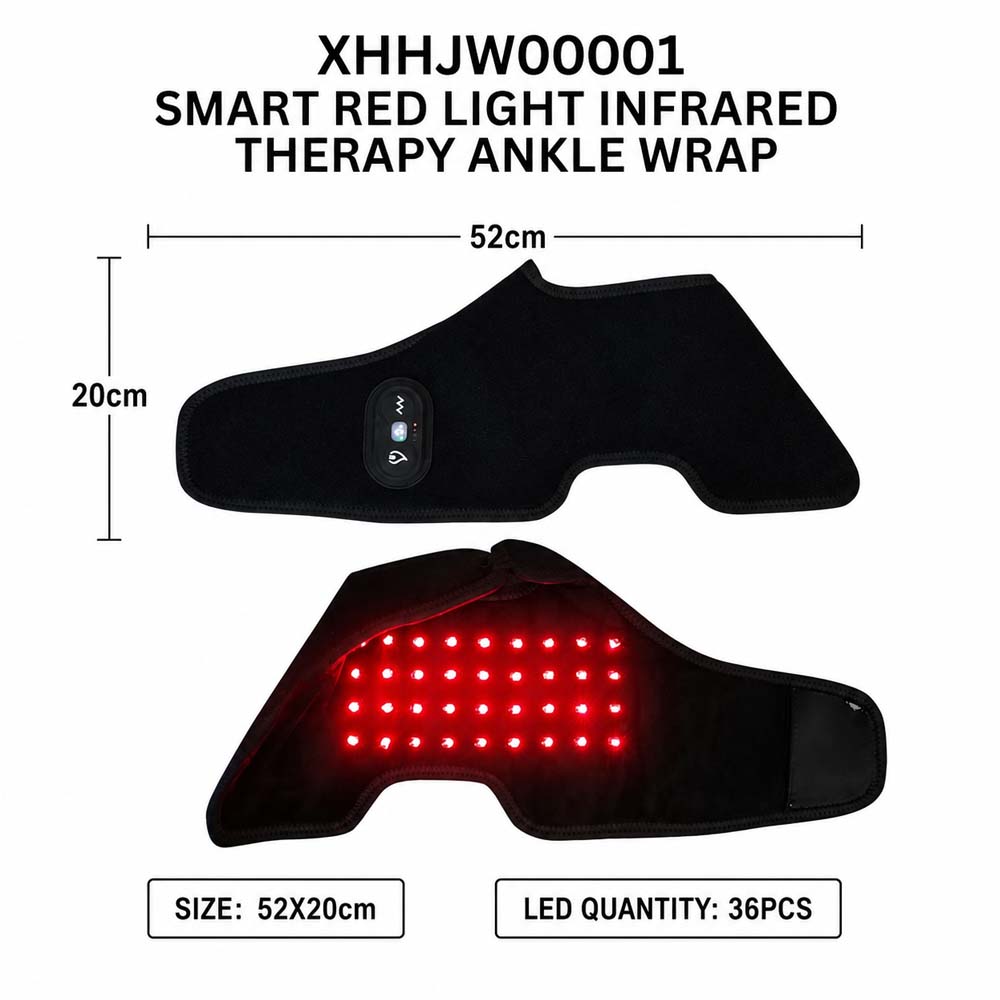

Size	52 × 20 cm
Power Consumption	8W
Input Voltage	AC 100–240V / 50Hz
Output Voltage	DC 5V / 2A
Control Method	Dual-button switch + voice control
Material	Imported velvet fabric + "OK" fabric (specialized material for athletic protective gear)
Available Colors	Black or Customized
Battery	Built-in 2600mAh rechargeable lithium battery

Product Features

1. High-Density 108-Chip Light Array

Featuring 36 triple-chip LEDs—totaling 108 individual light-emitting chips—this array provides uniform, high-density light coverage across the 52×20cm ankle wrap. This design eliminates the "hot spots and dark zones" commonly found in traditional single-chip LED arrays.

2. Four-in-One Functionality with Independent Control

Light therapy, heat therapy, vibration massage, and voice control can be used individually or in combination. Heat therapy helps relax tense muscles around the ankle; vibration massage physically disrupts pain signal transmission; and light therapy supports recovery at the cellular level. Together, they create a comprehensive approach combining physical relaxation with photobiomodulation.

3. Wireless, Wearable, and Movement-Friendly

Powered by a 2600mAh lithium battery, the sports recovery ankle brace frees you from the constraints of power cords. Crafted from a composite of soft, skin-friendly fabric and durable "OK" cloth, it ensures a secure, comfortable fit whether you are sitting, lying down, or engaging in light activity.

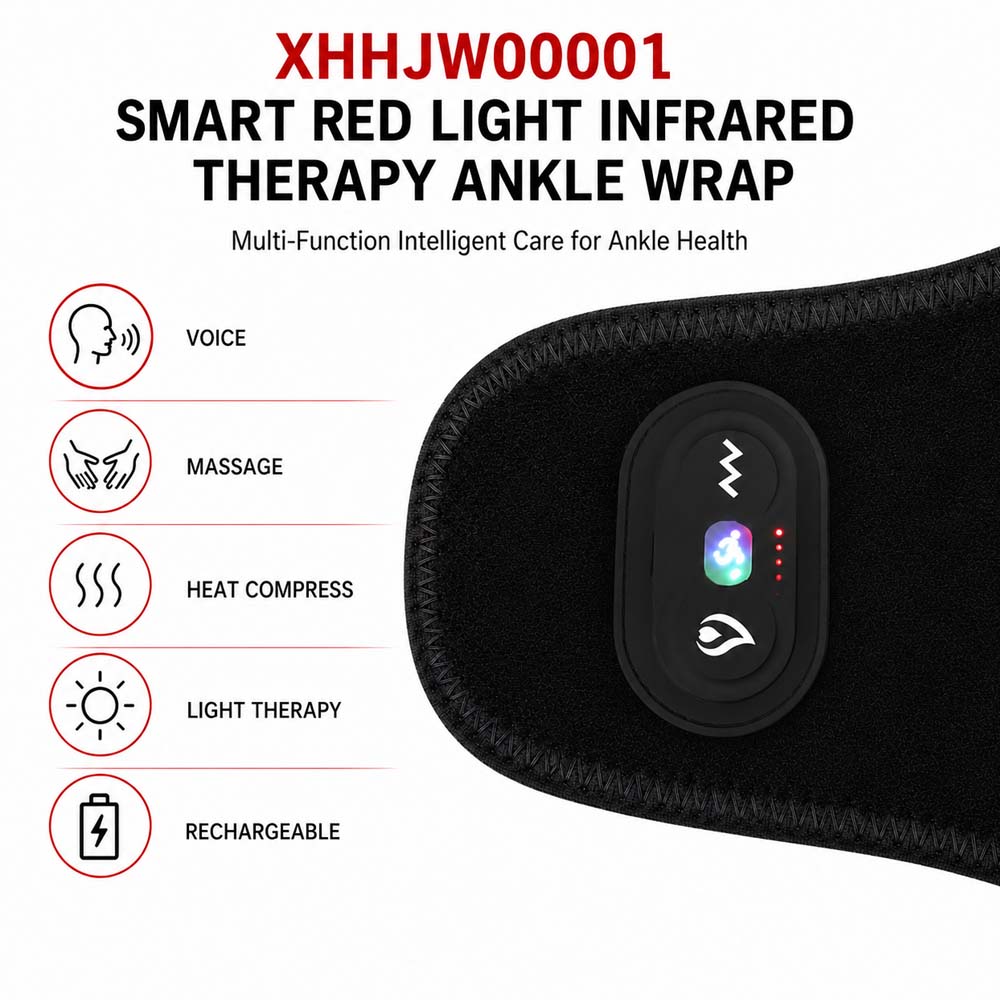

4. Voice Control for Enhanced Accessibility

Equipped with built-in voice prompts and voice command support, the rechargeable ankle brace eliminates the need to constantly check buttons or a smartphone—making it especially convenient for older users or those with limited hand mobility.

FAQ

Frequency

Q1: How long should each session last, and how frequently should it be used?

We recommend a duration of 20–30 minutes per session, 1–2 times daily. Avoid continuous use for more than 30 minutes at a time, and allow at least 10 minutes between sessions for the device to cool down.

Scenarios

Q2: Can I wear it while sleeping?

No, this is not recommended. The device should be used while you are awake and for the designated duration. Do not wear it continuously while sleeping, as prolonged contact with heat or light sources may cause skin discomfort.

Precautions

Q3: Should my skin be exposed (uncovered) during use?

The device can be used on clean, dry skin or over a thin layer of clothing. Do not use it immediately after applying photosensitive skincare products (such as those containing high-concentration retinoids or alpha-hydroxy acids/AHAs).

Operational Tips

Q4: Since near-infrared (NIR) light is invisible to the naked eye, how can I tell if the device is working?

850nm near-infrared light is outside the human visible spectrum; however, when the device is active, the LED area typically emits a faint, dark-red glow. Additionally, the heat therapy and voice prompt functions provide confirmation that the device is running. Never look directly at the LED light source.

Battery Life

Q5: How long does the battery last?

A fully charged 2600mAh battery supports multiple 20–30 minute standard treatment sessions. Actual battery life may vary depending on the combination of features in use (e.g., using light therapy, heat therapy, and massage simultaneously will consume more power).

Contraindications

Q6: In what situations should I avoid using the device or consult a doctor first?

Use is not recommended without prior professional medical evaluation in the following cases: pregnancy (especially when applied to the abdominal or lumbar regions); photosensitivity or the use of photosensitizing medications; a history of epilepsy or convulsions; the presence of active tumors, infections, or open wounds in the area being treated; or severe circulatory disorders or sensory neuropathy (such as uncontrolled diabetic foot).

Customization and Compliance

Safety & Compliance

The red light ankle therapy device is designed in accordance with safety requirements for wearable phototherapy devices. We can assist in preparing regulatory documentation—such as FDA 510(k) submissions, EU CE/MDR certification, and FCC compliance—tailored to your target markets, while also ensuring that labels and user manuals meet all relevant regulatory standards.

During use, please avoid exposing the device to water, subjecting it to crushing or stepping, or looking directly at the LED light source. Discontinue use immediately if the device becomes damaged.

OEM & ODM Customization

We offer flexible customization options—including exterior fabrics, ankle-support tailoring, LED wavelength configurations, treatment modes, voice-prompt languages, and packaging/manual design—to help brands develop a differentiated product portfolio.

We provide support for regulatory registration and label compliance, as well as sample validation and technical integration. Specific customization plans and minimum order quantities (MOQs) can be determined based on your distribution channel and procurement scale.

Service & Support

A 1-year warranty is included, covering usage guidance, hardware troubleshooting, and repair or replacement services for the duration of the warranty period.

We are actively seeking channel partners, including agents and distributors. We provide support in the form of product samples for testing, technical integration, coordination of compliance documentation, and marketing materials. Please contact us to discuss specific agency policies, wholesale pricing, and regional authorization terms.
