CE MDR Certified Full Body Pressotherapy Lymphatic Drainage Suit

VU-IPC04 6-Chamber Air Compression Therapy Machine with Compression Pants and Jacket.


A Versatile Full-Body Pneumatic Compression System for Rehabilitation, Lymphedema Care Support, and Professional Wellness Applications

View Compliance Docs
Overview
The VU-IPC04 6-Chamber Air Compression Therapy Machine is a plug-in intermittent pneumatic compression system supplied with 6-chamber compression pants and a 6-chamber compression jacket. Designed for flexible body-area coverage, this system offers a versatile solution for professional healthcare, rehabilitation, and wellness product distributors.
CE MDR Certified Full Body Pressotherapy Lymphatic Drainage Suit
The compression therapy pants are designed to cover the lower body, while the compression therapy jacket provides coverage for the upper body. Each sleeve can be used independently, or compatible sleeves can be combined according to the device configuration and the user's needs. This flexibility supports full-body pneumatic compression routines and lymphatic drainage care programs when clinically appropriate.
CE MDR Certified Full Body Pressotherapy Lymphatic Drainage Suit

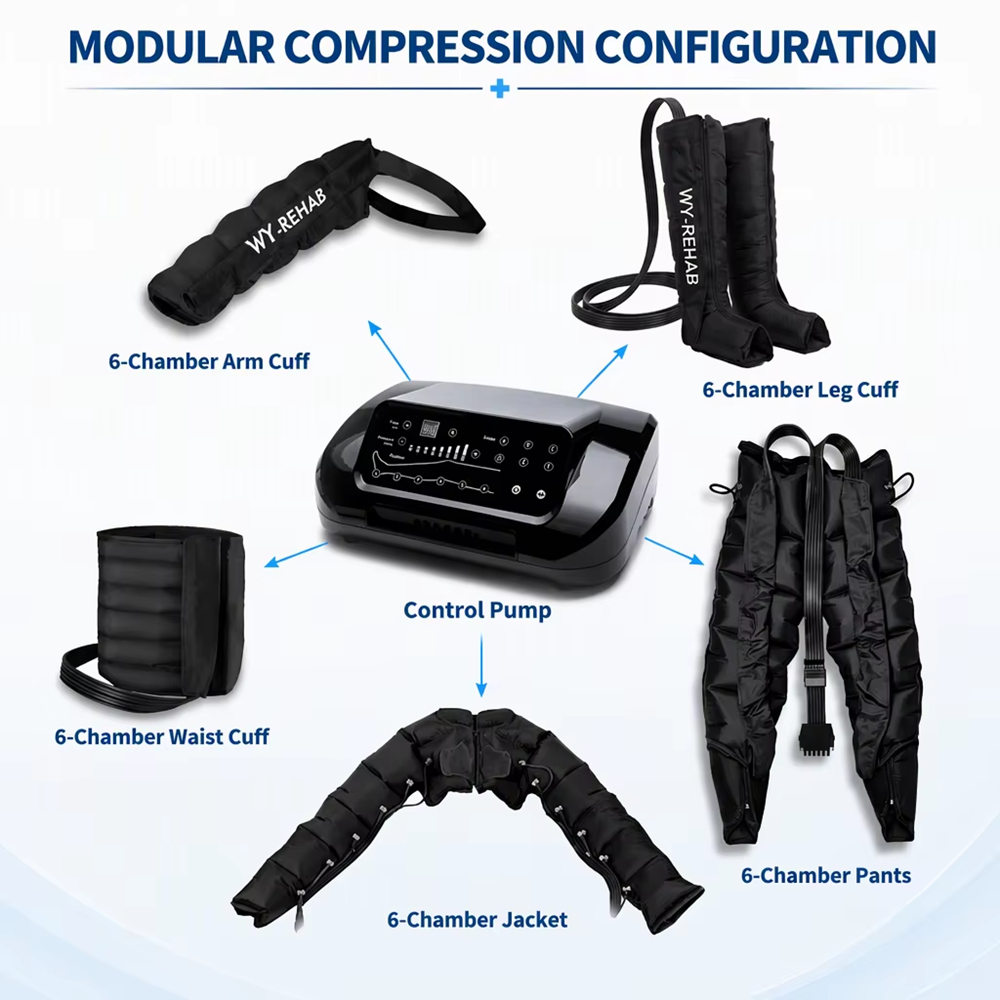

In addition to the standard pants-and-jacket package, the VU-IPC04 6-chamber compression therapy system can be configured with other compatible 6-chamber accessories, including leg compression boots, arm sleeves, and waist sleeves. This modular design allows distributors to offer multiple product configurations using one compatible control unit.

With CE MDR and FDA 510(k) credentials as specified for the applicable device, the VU-IPC04 is designed for business customers seeking a versatile compression therapy platform with OEM and ODM customization options.
ce mdr certified full body pressotherapy lymphatic drainage suit-7

Principle & Application

Working Principle: Six-Chamber Sequential Pneumatic Compression

The VU-IPC04 uses intermittent pneumatic compression (IPC) technology. Air is delivered into the chambers of a compatible sleeve in a controlled sequence, followed by pressure release. This repeated inflation-and-deflation cycle applies external compression to the covered body area.

Sequential pneumatic compression can support fluid movement and lymphatic drainage as part of an appropriate care program.

The six-chamber design provides segmented compression across the covered area. Using compatible sleeves separately or in an approved combination gives distributors flexibility when developing configurations for different customer requirements.

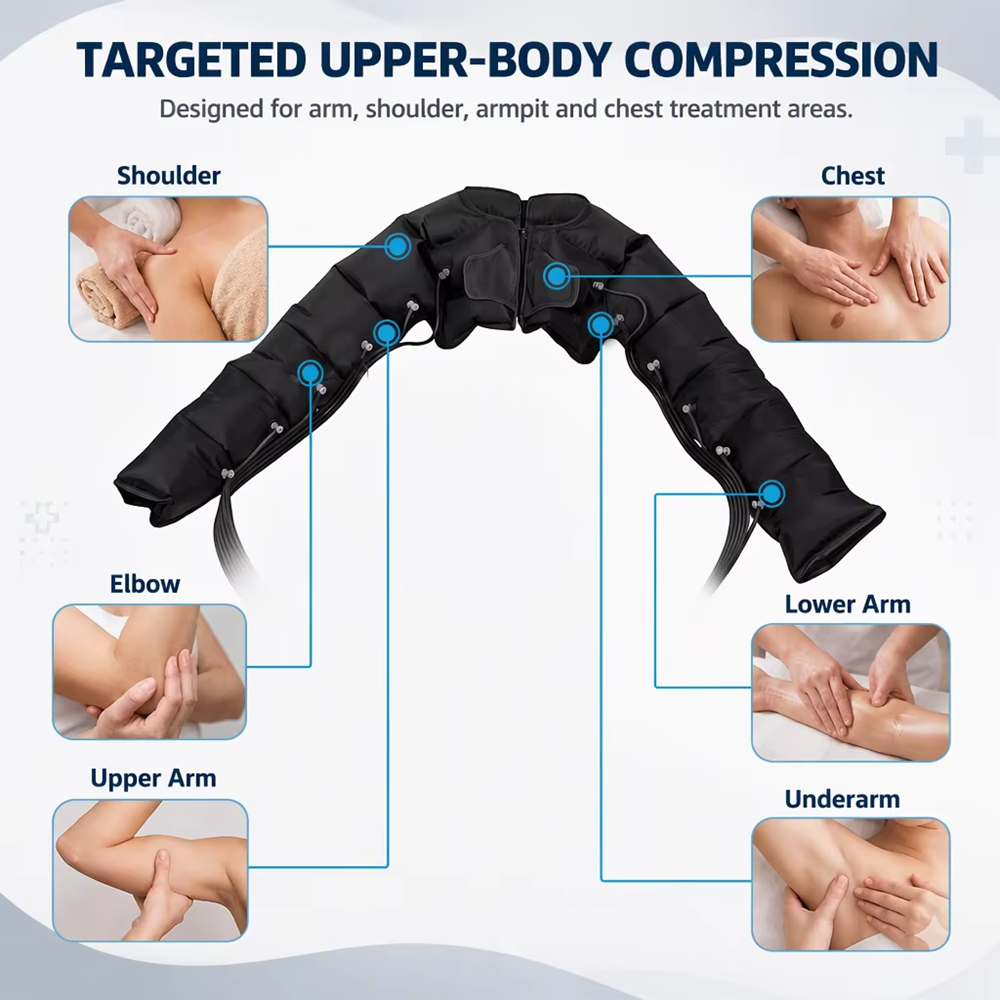

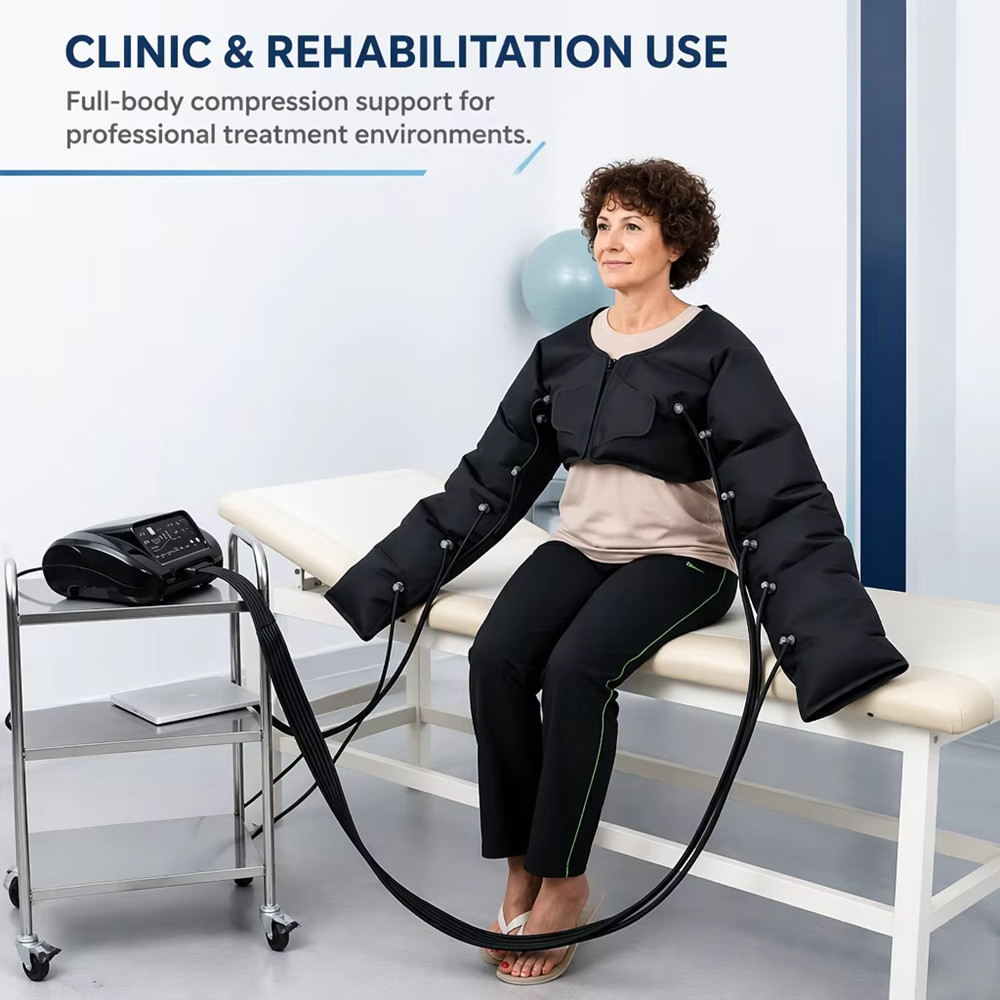

6-Chamber Compression Jacket

Application areas: Arms, shoulders, underarms, chest, back, etc.

Applications and Benefits
- Upper-body compression: Provides sequential pneumatic compression to the covered upper-body areas, supporting professional compression therapy protocols.

- Lymphatic care support: Can serve as an adjunct to lymphedema management—as directed by a clinician—provided it is appropriate for the individual’s condition and aligns with the device’s intended use.

- Multi-area coverage: A single garment covers multiple upper-body regions, eliminating the need for separate arm sleeves.

- Professional use: Suitable for qualified rehabilitation centers, lymphedema care clinics, and home-care settings.

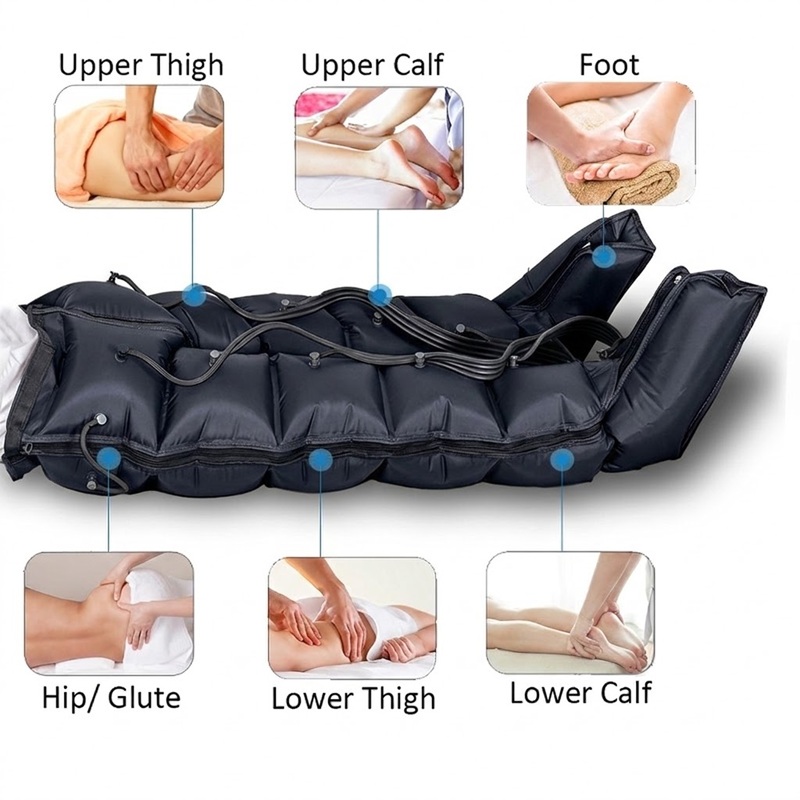

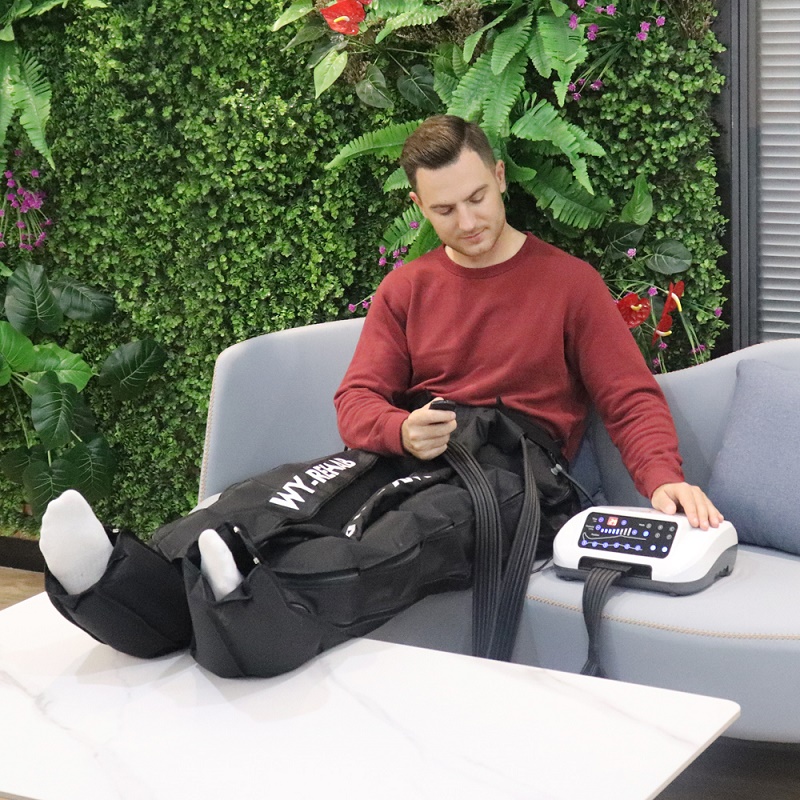

6-Chamber Compression Pants

Application Area: Covers the lower body, extending from the feet to the hips.

Applications and Benefits
- Comprehensive Lower-Body Coverage: Provides pneumatic compression from the feet, up through the legs, and to the hips—offering a broader coverage area than traditional leg compression boots.

- Sequential Pneumatic Compression: Six air chambers inflate and deflate in a controlled sequence, applying intermittent external pressure to the covered areas.

- Support for Lymphatic Drainage Care: Where clinically appropriate, it can support clinician-directed lymphatic care and edema management regimens.

- Convenient Garment Design: Integrates multiple lower-body compression zones into a single garment; depending on device instructions, it can be used for professional clinical care or, where eligible, for home-based care.

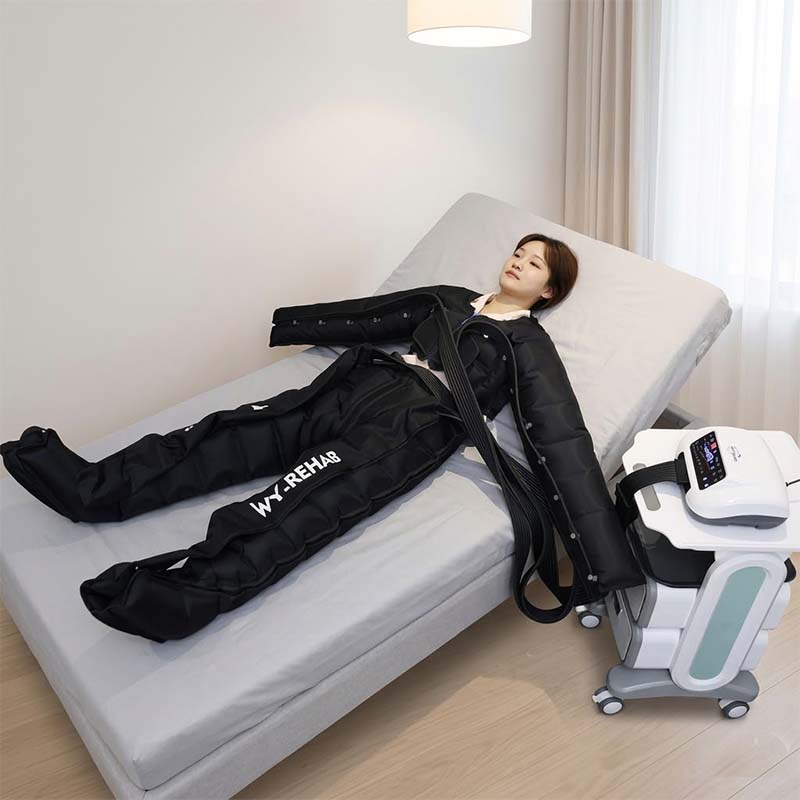

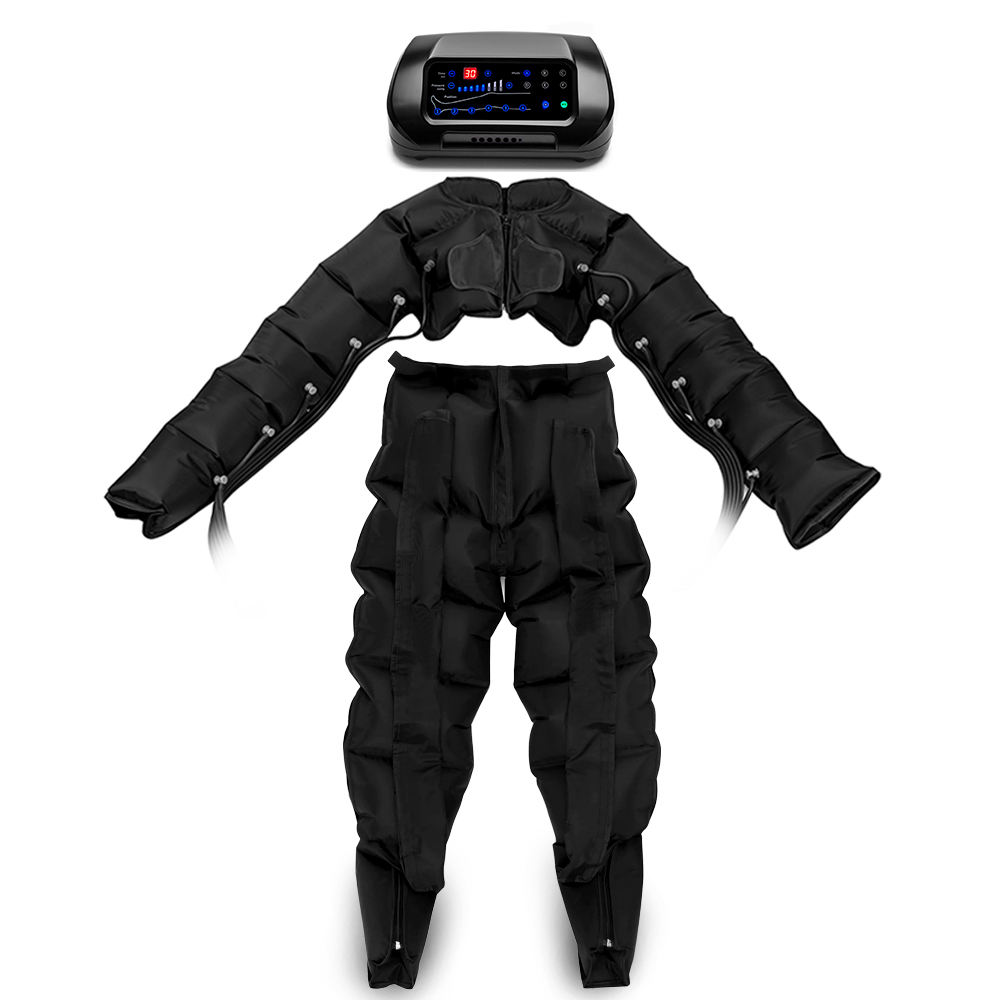

Combined Use: Full-Body Pressotherapy Lymphatic Drainage Suit

Applications and Advantages
- Comprehensive Coverage: Combines upper-body compression (via a top garment) with lower-body compression (via a bottom garment) to provide broader coverage within a single system.

- Flexible Treatment Configurations: The top and bottom garments can be used either individually or in combination.

- Support for Lymphatic Care: Where appropriate, this combined configuration can serve as part of a lymphatic care regimen under the guidance of a clinician; suitability depends on the patient’s specific clinical condition.

- Diverse Product Options: Offers rehabilitation equipment providers and medical device distributors a differentiated, full-body compression solution, suitable for both professional clinical settings and home-care markets.
Working Principle: Six-Chamber Sequential Pneumatic Compression
6-Chamber Compression Jacket
6-Chamber Compression Pants
Combined Use: Full-Body Pressotherapy Lymphatic Drainage Suit
01/04

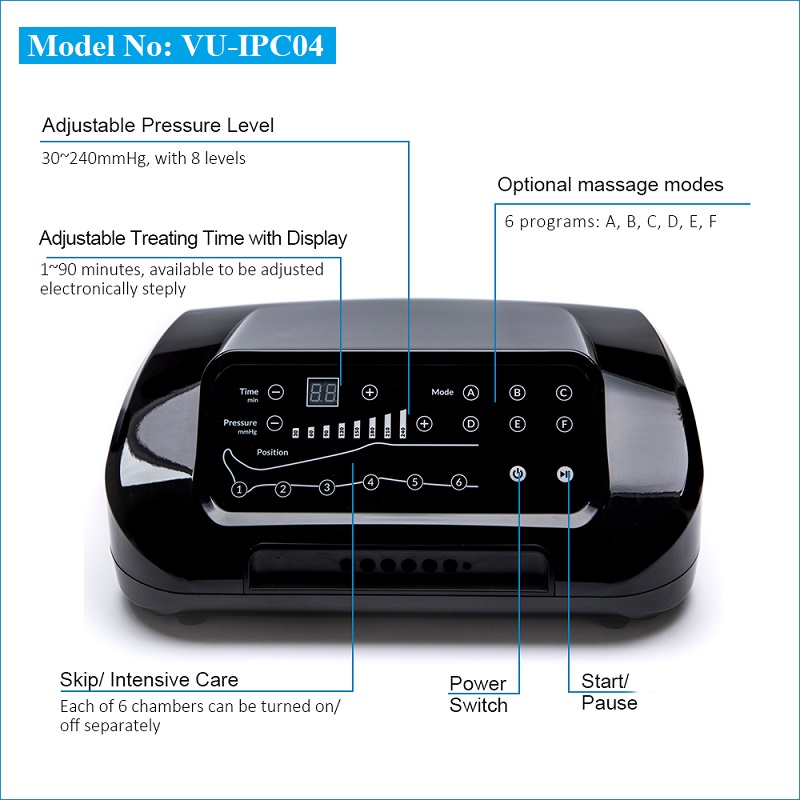

Specification

Parameter

Specification

Model

VU-IPC04

Product Type

Plug-in 6-chamber compression therapy system

Certification

FDA, EU-MDR CE

Pressure Range

30–240 mmHg (8 levels)

Massage Modes

6 Modes (A/B/C/D/E/F)

Treatment Time

1-90 Minutes

Power Consumption

65W

Input Voltage

220-240V/50Hz, 220-240V/60Hz, 110-120V/60Hz

Device Dimensions

300 × 237 × 126 mm

Control Interface

LED Touch Control Panel & Remote Controller

Chambers

6 independent airbags

Optional Sleeve

Leg sleeves, arm sleeve, waist sleeve, compression jacket & pants

Available Colors

Black Machine+Black Sleeves or White Machine+Gray Sleeves or Customized

Product Features

1. Six-Chamber Sequential Compression

1. Six-Chamber Sequential Compression

Six-chamber pneumatic compression delivers controlled, sequential inflation and deflation across compatible sleeves, supporting structured compression routines for lymphatic care and rehabilitation applications where appropriate.
2. Reliable Plug-In Power Design

2. Reliable Plug-In Power Design

The plug-in design provides a continuous external power supply during operation, making the VU-IPC04 a practical option for clinics, rehabilitation centers, and other stationary treatment environments.

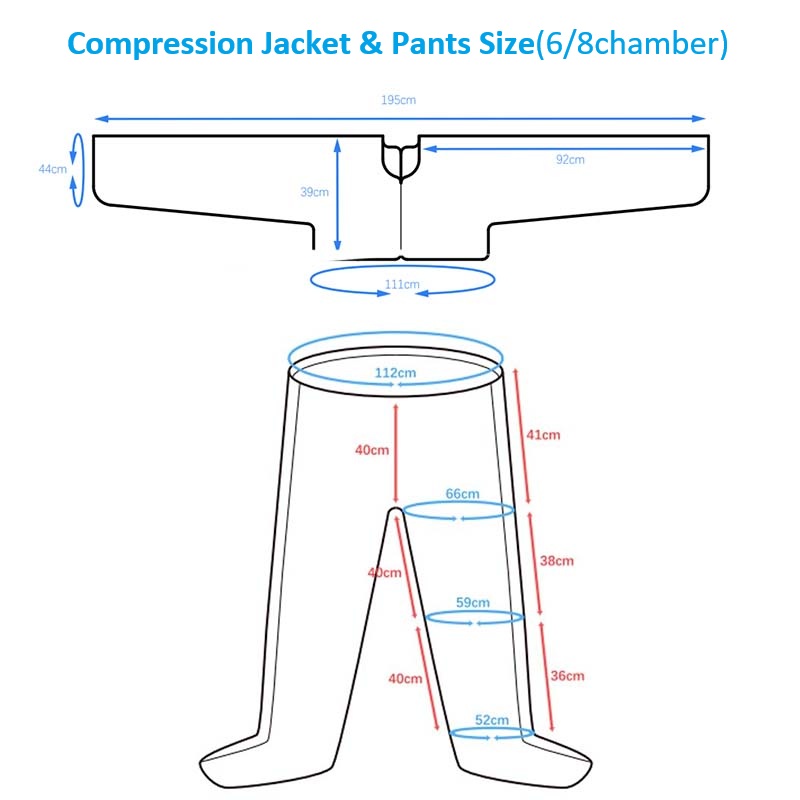

3. Flexible Single or Combined Use

3. Flexible Single or Combined Use

The 6-chamber compression jacket and pants can be used separately or together when supported by the machine configuration, offering flexible upper-body, lower-body, and broader body-area coverage.
4. Multiple Compatible Sleeve Options

4. Multiple Compatible Sleeve Options

Configure the pressotherapy lymphatic drainage system with compatible 6-chamber compression pants, jacket, leg compression boots, arm sleeves, or waist sleeves to meet different customer requirements and expand your product offering.

Customization and Compliance

Safety and Regulatory Compliance

Safety and Regulatory Compliance

The VU-IPC04 air compression therapy machine has obtained CE MDR and FDA 510(k) certifications.

Before use, customers should read the user manual and strictly adhere to the guidelines regarding contraindications, precautions, pressure settings, and treatment duration. Pneumatic compression therapy may not be suitable for everyone. Healthcare professionals should seek professional clinical advice when evaluating suitability; particular caution should be exercised if a patient has underlying medical conditions that could affect the outcome of compression therapy.

For distributors, VU can provide relevant product and compliance documentation for review, subject to document availability and applicable regulatory requirements.
Customization Options (OEM & ODM)

Customization Options (OEM & ODM)

Our manufacturing and product-development capabilities support distributors, importers, brand owners, and regional partners seeking differentiated compression therapy products.

Available cooperation options may include:
Private-label branding: Logo placement and branded packaging.
Product customization: Selected appearance, color, and configuration options.
Sleeve selection: Compatible pants, jacket, leg, arm, and waist accessories.
Packaging and documentation: Customized packaging and user manuals.
Technical support: Online technical assistance for business partners.
After-sales support: One-year warranty for eligible products, subject to the agreed terms.

Customization details, minimum order quantities, lead times, and certification scope should be confirmed for each project before production.
Why Partner with VU?

Why Partner with VU?

Working with VU gives distributors access to a configurable pneumatic compression platform backed by OEM and ODM manufacturing support.

Flexible product portfolio: One compatible device platform with multiple sleeve options.
B2B customization: Branding, packaging, and selected configuration services.
Business support: Online technical assistance and after-sales service.
Market development: Options for distributors, importers, and private-label brands.
Long-term cooperation: Product planning and configuration discussions based on target-market needs.

We welcome inquiries from medical equipment distributors, rehabilitation product suppliers, importers, and private-label brands looking to expand their pneumatic compression therapy portfolio.
