Smart Pump Alternating Pressure Air Mattress System with Auto Turning and 45° Sit-Up Support

Smart Pump Alternating Pressure Air Mattress System with Auto Turning and 45° Sit-Up Support

CE & FDA Certified 22-Tube Anti-Bedsore Mattress System | Smart Air Pump with Alternating Pressure, Static/Wave Mode, Automatic Turning & Back-Up Care

View Compliance Docs

Overview

The VU-AM02 Smart Pump Alternating Pressure Air Mattress System with Auto Turning and 45° Sit-Up Support is developed for care facilities and distributors that need a practical anti-bedsore solution for long-term bedridden patients. From a manufacturer’s perspective, this model is built not only for pressure relief, but also for easier daily nursing, simple operation, repeatable performance, and flexible procurement.

smart pump alternating pressure air mattress system with auto turning and 45 sit up support-5

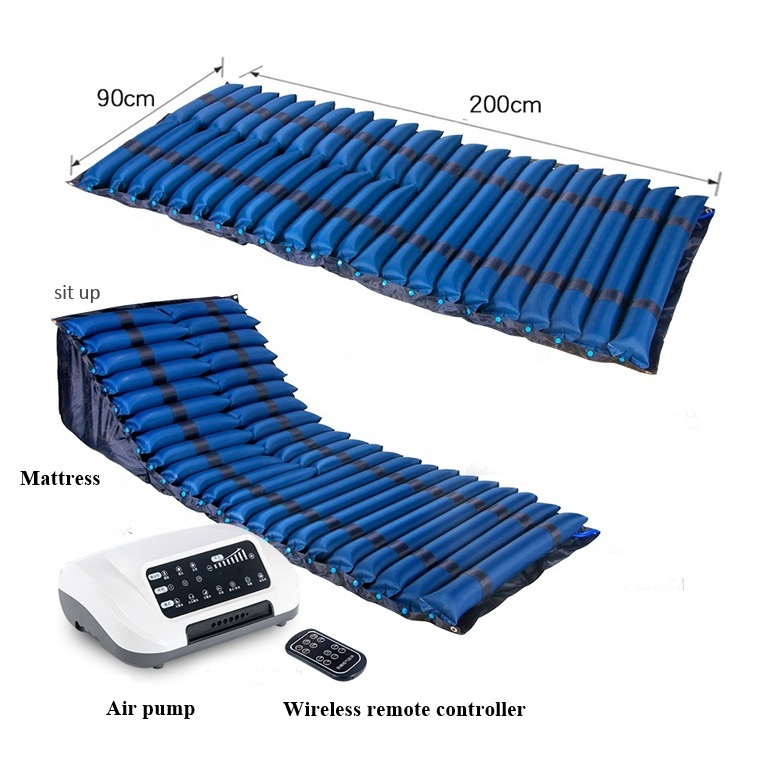

The system includes the VU602 air pump and VU6007 inflatable mattress, forming a complete bedside care platform. The mattress measures 200 × 90 cm and uses 22 thickened PVC air tubulars. The pump provides 20–110 mmHg adjustable pressure, 65W power consumption, optional 9 / 12 / 25-minute wave cycles, static mode, left/right turning, automatic left-right turning, and gradual sit-up support.

smart pump alternating pressure air mattress system with auto turning and 45 sit up support-6

For buyers looking for an air mattress for pressure sores, VU-AM02 offers a stronger nursing function package than a conventional inflatable mattress. It can be used in hospitals, rehabilitation centers, nursing homes, elderly care institutions, and home care supply channels. With CE and FDA certification, standard stock from 1 unit, and customization from 100 units, it is suitable for both sample evaluation and branded distribution projects. As an alternating pressure mattress for bedsores, the product helps change pressure points through A/B air tube operation while also supporting patient repositioning and caregiver workflow.

smart pump alternating pressure air mattress system with auto turning and 45 sit up support-7

Clinical Applications & Care Benefits

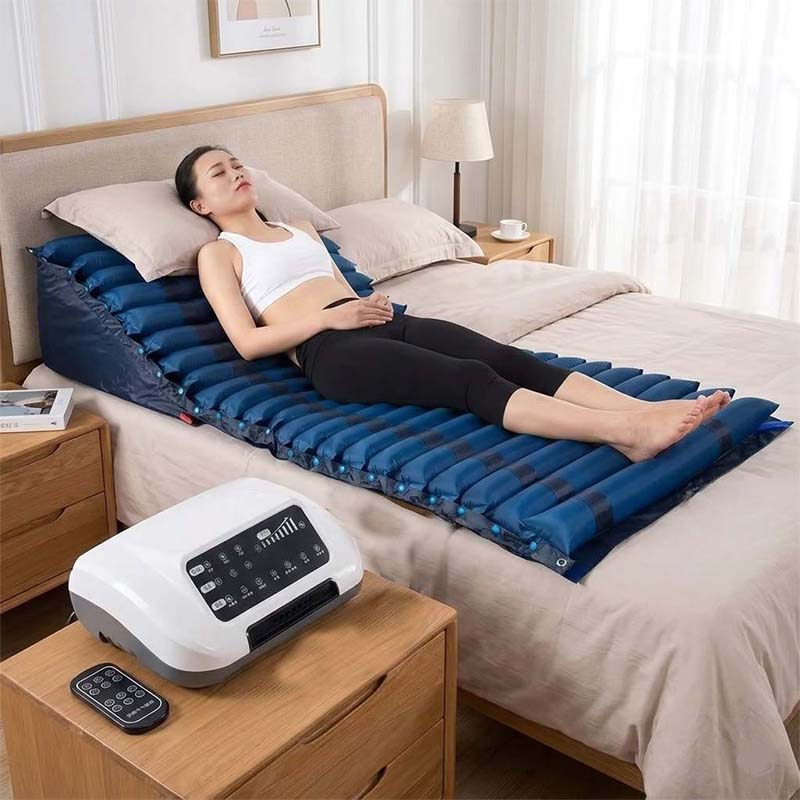

Pressure Care for Long-Term Bed Rest

Patients who stay in bed for more than one week may experience discomfort, dizziness, reduced mobility, and higher skin pressure risk. VU-AM02 works as an air mattress for pressure ulcers by helping redistribute body weight across multiple inflatable tubes instead of allowing continuous compression on one area.

A/B Tube Alternation for Dynamic Support

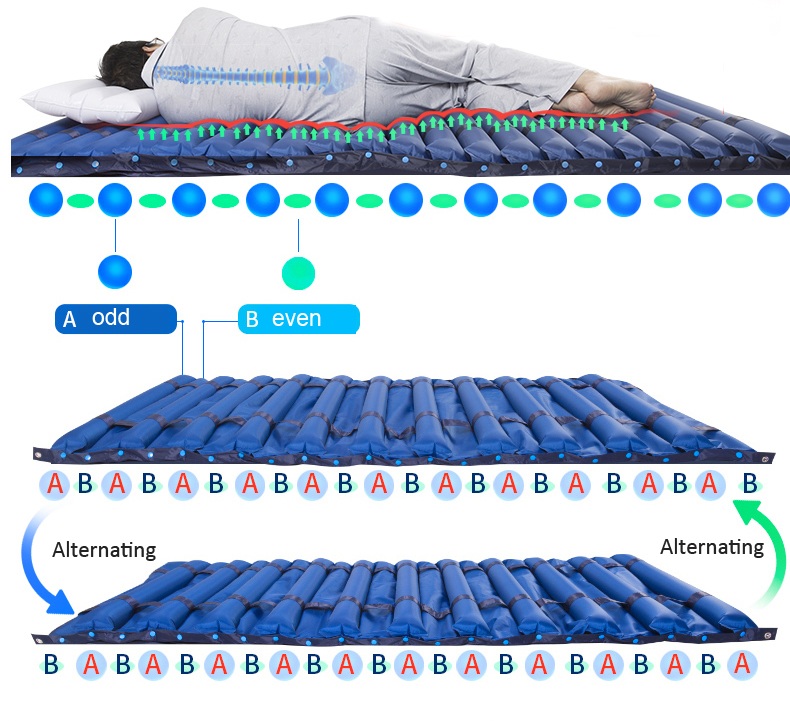

The mattress is designed with odd and even tube groups. In wave mode, the tubes inflate and deflate alternately, creating a changing support surface. This makes the product a useful alternating air mattress for care programs that require scheduled pressure redistribution. The caregiver can select 9, 12, or 25 minutes as the cycle time according to patient tolerance and care routine.

Nursing Position Management

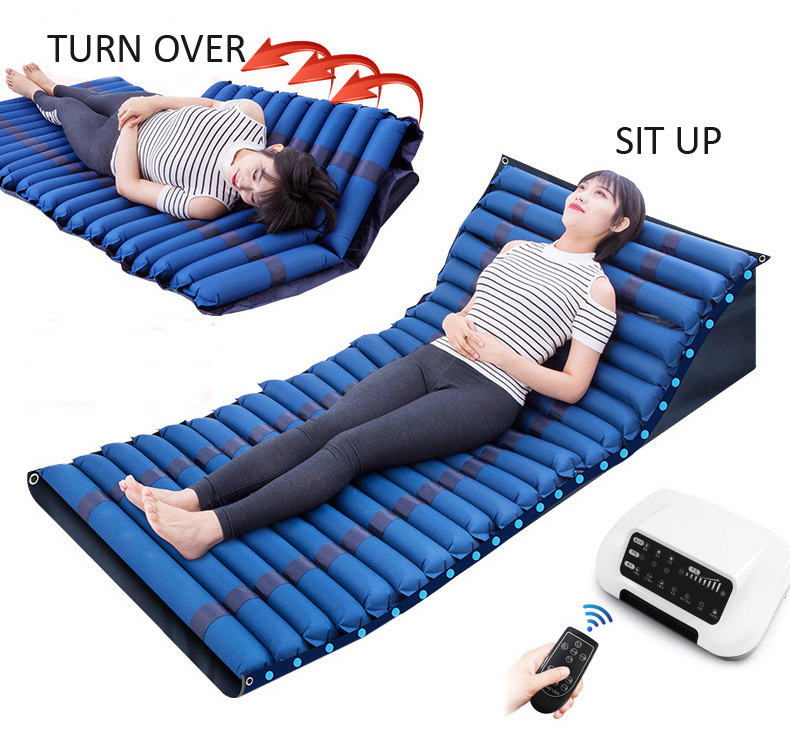

VU-AM02 is more than a standard hospital bed pressure mattress because it includes body positioning support. The turn-left, turn-right, and automatic left-right functions help caregivers manage routine repositioning. In automatic turning, the system turns to one side, stays for about 10 minutes, returns flat, then turns to the other side within the programmed care cycle.

Sit-Up Assistance for Daily Activities

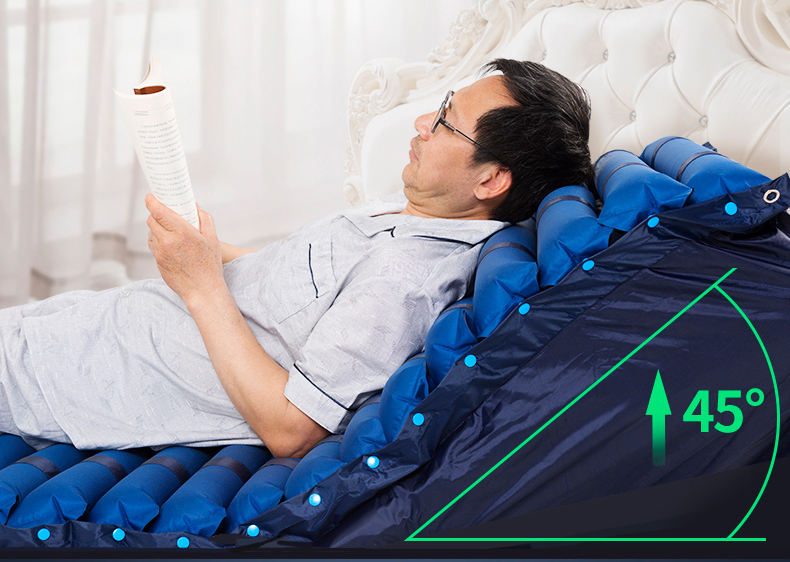

The sit-up function slowly raises the patient’s back section to about 45° in approximately 35 minutes. This gradual motion is designed for comfort and nursing safety. It can support feeding, communication, reading, observation, and daily bedside care. For customers comparing an air mattress for bed sores, this function provides added value for long-term care environments.

Static Support for Special Cases

Static mode inflates all air tubes together to create stable support. According to the user manual, fracture patients should use static mode only. Wave, turning, and sit-up modes are not suitable for fracture patients unless approved by medical professionals.

A/B Tube Alternation for Dynamic Support

01/05

Specifications

Parameter	Specification
Product Name	Smart Pump Alternating Pressure Air Mattress System with Auto Turning and 45° Sit-Up Support
Pump Model	VU602
Mattress Model	VU6007
Certification	CE, FDA
Pressure Range	20–110 mmHg
Suggested Pressure	40–60 mmHg after normal inflation
Power Consumption	65W
Power Supply	AC220V/50Hz, AC110V/60Hz, AC220V/60Hz
Pump Size	30 × 23.7 × 12.6 cm
Mattress Size	200 × 90 cm
Mattress Structure	22 inflatable air tubulars
Mattress Material	Thickened durable medical PVC
Cycle Time	9 / 12 / 25 minutes
Functions	Static, wave, turn left, turn right, left-right turning, sit up
Maximum Patient Weight	Not suitable for patients over 135 kg
Working Conditions	5–40℃, RH ≤80%, 70–106 kPa

Pump, Material & User-Centered Design

Intelligent Pressure Adjustment

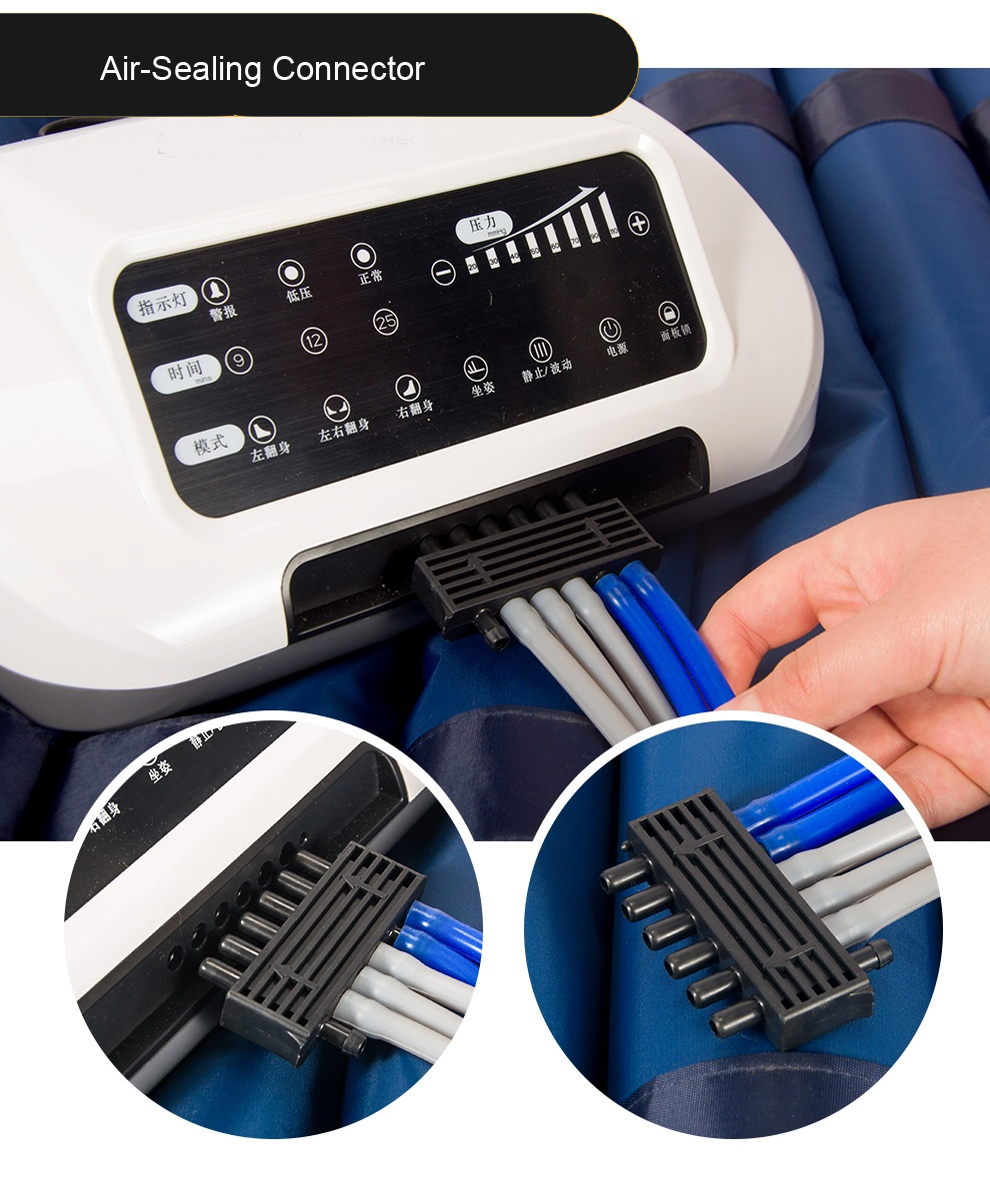

The pump control panel includes alarm indicator, low-pressure light, normal status light, pressure bar display, “+ / −” pressure keys, time keys, mode keys, power button, and panel lock. For buyers comparing an alternating air pressure mattress, this clear interface helps caregivers learn operation quickly.

Care-Oriented Air Tube Layout

The 22-tube structure supports both static inflation and wave operation. The A/B arrangement helps explain pressure redistribution visually during product demonstration. This is useful for distributors presenting the product as an air mattress for pressure sores to hospitals or home care buyers.

Waterproof Medical PVC Mattress Surface

The blue PVC fabric is waterproof, stain-resistant, durable, and easy to clean. It can be wiped with a dry or damp cloth and neutral detergent. For institutions sourcing an air mattress for pressure ulcers, easy cleaning is important for repeated use and hygiene control.

Integrated Bedside Nursing Functions

Compared with an alternating low air loss mattress, VU-AM02 focuses on practical tube alternation, automatic turning, sit-up assistance, and stable static support. It is designed for buyers who need visible nursing functions and simple maintenance.

Safety, Compliance & Maintenance

User Suitability

Patients over 135 kg should not use this mattress. Fracture patients should only use static mode. When used as an alternating pressure mattress for bedsores, all settings should follow caregiver guidance or medical advice.

Installation and Inflation

Place the mattress on a clean bed surface without sharp or hard objects. Keep the air inlet near the patient’s feet. Connect the quick connector firmly and ensure the arrow mark faces upward. Normal inflation usually takes 15–20 minutes, making it ready for use as a hospital bed pressure mattress.

Cleaning and Storage

Turn off the pump before cleaning. Do not wash the pump or mattress directly. Wipe the surface, avoid acid and alkali cleaners, release the air before storage, and keep the product in a dry, ventilated, moisture-proof place away from heat and sunlight.

Partnership & Support Services

MOQ & OEM/ODM Options

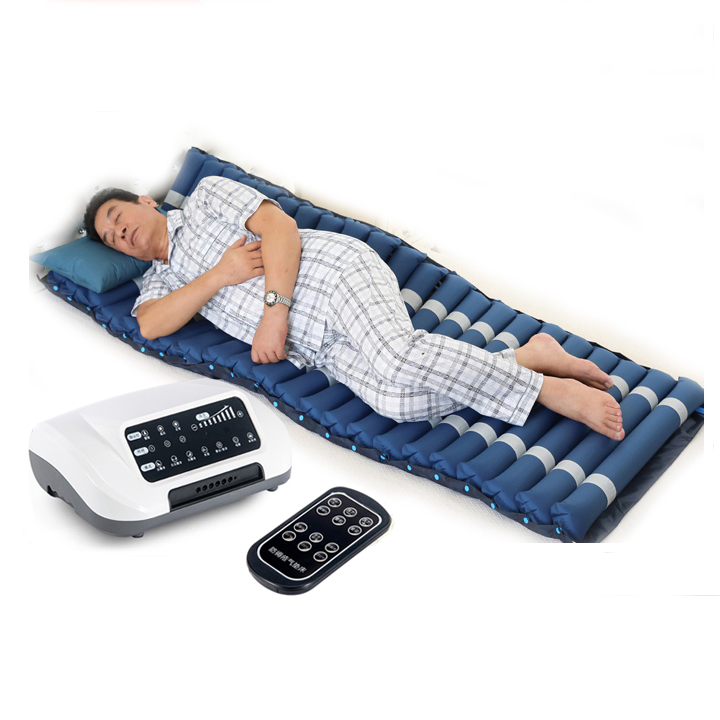

Standard stock is available from 1 unit MOQ for sample testing and small orders. Customized projects start from 100 units, including logo, packaging, labeling, plug type, carton design, and documentation. This supports buyers sourcing an alternating air pressure mattress for local market distribution.

Manufacturer Supply Support

We support medical importers, rehabilitation equipment dealers, nursing home suppliers, and home care brands with product guidance, configuration advice, and stable supply. For buyers comparing an alternating low air loss mattress, VU-AM02 provides a cost-effective alternative with automatic care functions.

Warranty & Technical Service

Each unit includes 1-year warranty and online technical support for setup, operation, troubleshooting, and after-sales communication, helping partners maintain long-term service continuity for the air mattress for bed sores category.
