Portable Oxygen Concentrator with Smart Monitoring

Intelligent Oxygen Therapy Device Portable Oxygen Concentrator

Intelligent Oxygen Therapy Device Portable Oxygen Concentrator

Portable and lightweight design · High oxygen concentration output · Intelligent monitoring · Replaceable battery design · Adjustable settings for personalized oxygen therapy

Overview

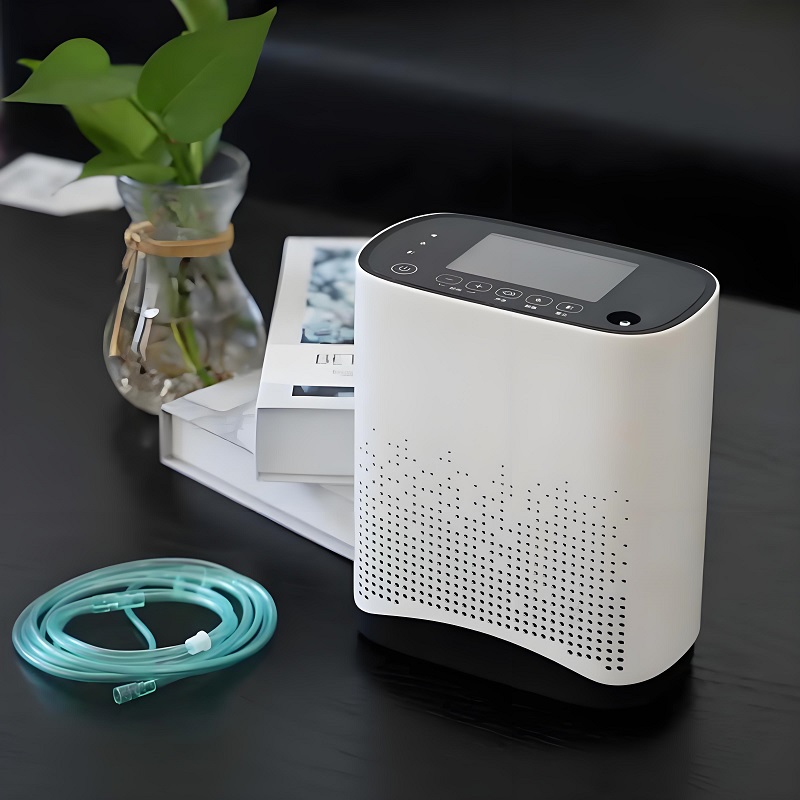

The Portable Oxygen Concentrator is a compact and intelligent oxygen therapy device designed to provide convenient and reliable oxygen support for users who require supplemental oxygen in daily life, travel, home care, and rehabilitation environments. Featuring advanced oxygen concentration technology, intelligent monitoring systems, and a lightweight portable design, this device delivers high-purity oxygen while offering flexible operation and easy mobility.

With built-in battery power, adjustable oxygen flow settings, oxygen concentration monitoring, respiratory detection, and altitude compensation technology, the portable oxygen concentrator provides users with a safer, smarter, and more comfortable oxygen therapy experience.

intelligent oxygen therapy device portable oxygen concentrator-6

The portable oxygen concentrator adopts Pressure Swing Adsorption (PSA) oxygen generation technology. Through a molecular sieve system, nitrogen is separated from ambient air while oxygen molecules are collected and delivered through the oxygen outlet, producing high-concentration oxygen without the need for external oxygen cylinders.

The intelligent control system continuously monitors oxygen concentration, respiratory frequency, battery status, and operating conditions to ensure stable performance and safe oxygen delivery.

intelligent oxygen therapy device portable oxygen concentrator-7

Clinical Applications & Benefits

Key Intelligent Functions

High-efficiency oxygen generation: Provides oxygen concentration ≥90% for reliable oxygen support.

Adjustable oxygen flow modes: Three oxygen flow levels to meet different usage requirements.

Nebulization function: Supports aerosol therapy with adjustable nebulization performance.

Smart respiratory detection: Automatically detects breathing patterns and adjusts oxygen output.

Altitude compensation technology: Built-in altitude sensor automatically adjusts oxygen generation according to environmental changes.

Safety warning system: Includes low battery alarm and low oxygen concentration alarm.

Home Oxygen Therapy

Provides convenient oxygen support for users requiring long-term oxygen supplementation, allowing greater independence and mobility at home.

Respiratory Care & Rehabilitation

Supports respiratory rehabilitation programs and helps improve oxygen availability during recovery and daily activities.

Elderly Care

A lightweight and easy-to-operate solution for elderly users who need accessible oxygen support.

Travel & Outdoor Use

The compact battery-powered design allows users to receive oxygen support during transportation, outdoor activities, and travel.

Medical & Healthcare Facilities

Suitable for clinics, rehabilitation centers, nursing facilities, and home healthcare applications.

01/06

Specification

Parameter	Specification
Product Type	Portable Oxygen Concentrator
Function	Oxygen Production+Nebulization
Oxygen Concentration	≥90%
Oxygen Production Rate	2.3L/min
Working Time	30–720 minutes adjustable / Continuous operation
Noise Level	≤65dB
Respiratory Detection	Intelligent breathing detection
Battery Capacity	16.8V 2900mAh / Replaceable lithium battery
Charging Voltage	19V 3A
Power	60W

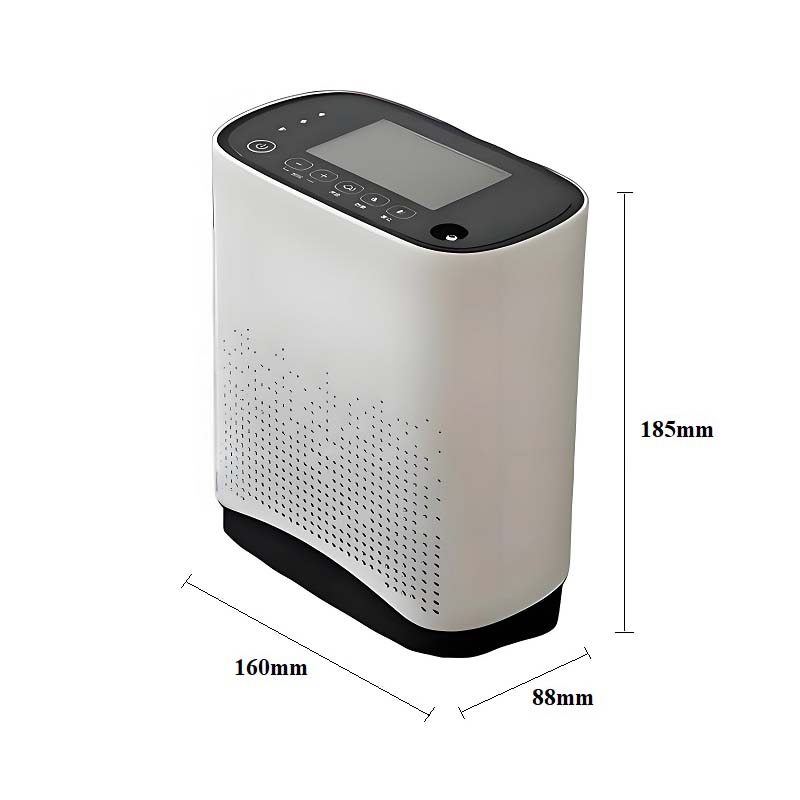

Product Dimensions	160 × 88 × 185mm
Available Colors	White or Customized
Machine Weight	Approx. 1500g (including battery)

Product Features

Compact & Portable Design

The lightweight body structure and rechargeable battery design make the device easy to carry and suitable for various environments, including home, travel, and rehabilitation use.

Intelligent Oxygen Management

Integrated sensors monitor oxygen concentration, breathing frequency, and operating status in real time, improving oxygen delivery efficiency and user safety.

Multiple Operating Modes

Users can select different oxygen flow levels and nebulization modes according to individual requirements, providing flexible treatment options.

Replaceable Battery System

The detachable battery design allows convenient replacement and extended usage, improving mobility and user convenience.

Customization and Compliance

Safety & Quality Assurance

Quality and safety are our top priorities. Our manufacturing facility operates under ISO13485 internationally recognized quality management systems, including:

Each product undergoes strict quality control processes, including material inspection, functional testing, performance verification, and reliability testing to ensure consistent product quality and user safety.

OEM / ODM Customization Services

As an experienced medical device manufacturer, we provide comprehensive OEM and ODM solutions to support global partners.

Whether you are a medical distributor, healthcare brand, rehabilitation equipment supplier, or wellness company, we can provide flexible manufacturing solutions tailored to your market requirements.

Manufacturer Support & Partnership

We provide complete support throughout the cooperation process: Professional online technical support/1-year product warranty/Stable production capacity and quality control/OEM/ODM manufacturing support/Fast response service for global customers,etc.

With advanced manufacturing capabilities and medical device expertise, we are committed to becoming your reliable global partner for intelligent oxygen therapy and healthcare solutions.
