VU-AMP01 Compact Rotary Pump Anti-Bedsore Air Mattress System

CE & FDA Certified 22-Air-Cell Medical PVC Mattress with Rotary Pressure Control, Wave/Static Mode, 45° Turning and Back-Up Positioning

View Compliance Docs

Overview

The VU-AMP01 Compact Rotary Pump Anti-Bedsore Air Mattress System is designed for professional long-term care environments where caregivers need a reliable, easy-to-operate pressure relief mattress with practical positioning functions. As a manufacturer, we supply this model for hospitals, rehabilitation centers, nursing homes, elderly care facilities, home care brands, and medical equipment distributors.

This system includes a compact 45W air pump and a 200 × 90 cm inflatable mattress made from thickened durable PVC. The mattress is built with 22 inflatable air cells, while the pump provides adjustable pressure from 20 to 120 mmHg. For buyers sourcing an air mattress for pressure sores, VU-AMP01 offers a practical balance of pressure adjustment, patient comfort, and simple caregiver operation.

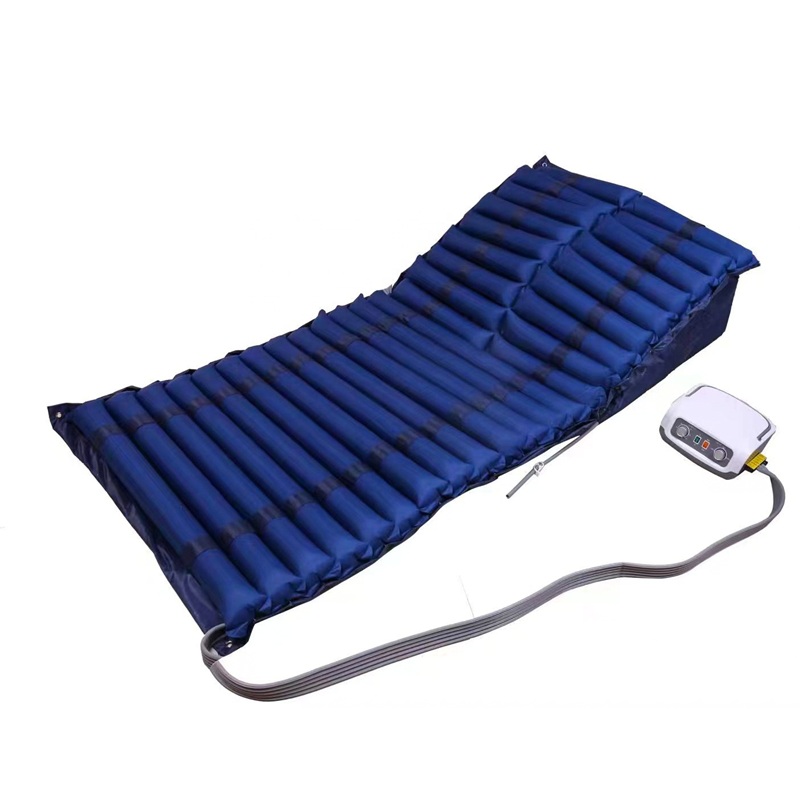

compact rotary pump anti bedsore air mattress system-6

Different from complicated digital-control systems, this model uses a rotary pressure dial and a function switch knob. Caregivers can easily adjust firmness, activate wave/static support, select left or right turning, raise the back section, or return the patient to a lying position. For distributors looking for an alternating air mattress, VU-AMP01 is suitable for markets that prefer mechanical-style control with clear visual operation. With CE and FDA certification, standard stock from 1 unit, customization from 100 units, 1-year warranty, and online technical support, this model is a dependable hospital bed pressure mattress option for both institutional procurement and home care distribution.

compact rotary pump anti bedsore air mattress system-7

Clinical Applications & Care Benefits

Long-Term Pressure Relief Care

Long-term bedridden patients are vulnerable to continuous pressure on the sacrum, hips, shoulders, back, and heels. VU-AMP01 works as an air mattress for pressure ulcers by using air-cell support to distribute body pressure across a wider contact area and reduce prolonged compression on fixed points.

Wave Function for Dynamic Support

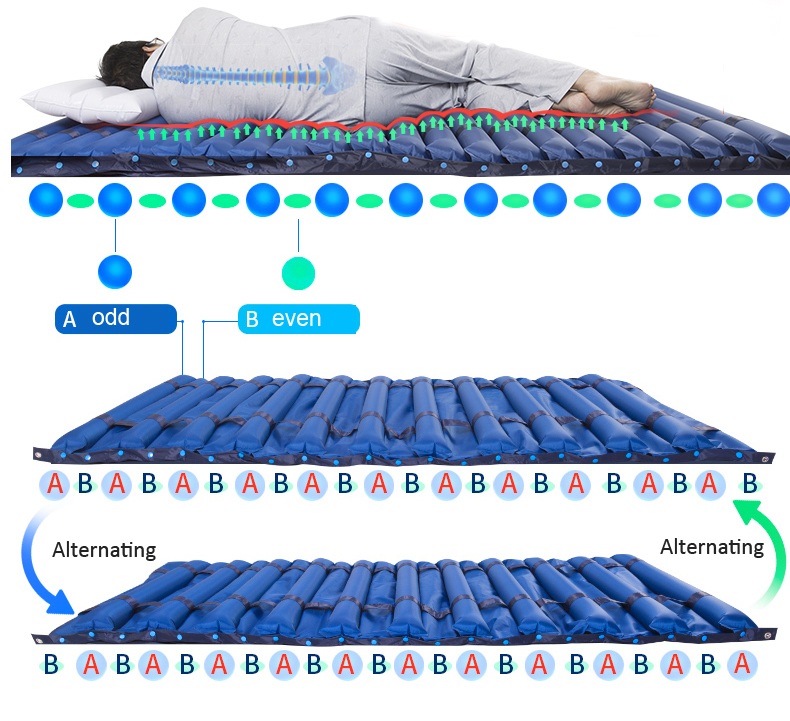

The wave mode creates periodic fluctuation by alternately inflating and deflating air-cell groups. This dynamic support helps change pressure points and supports local blood circulation. For care facilities selecting an alternating air pressure mattress, this function provides a clear and easy-to-explain pressure care mechanism.

Left and Right Turning Assistance

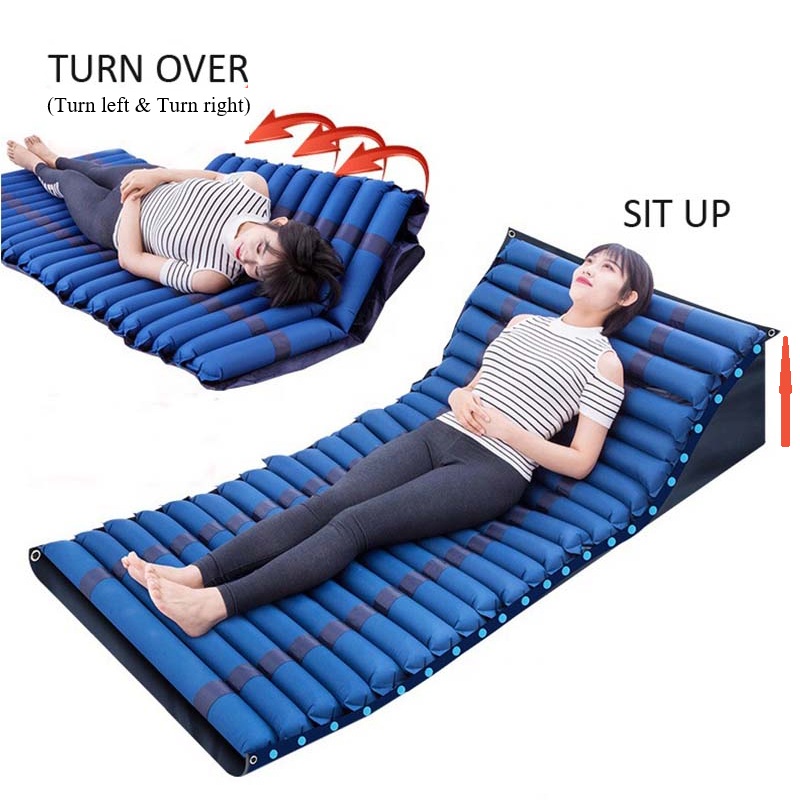

The function switch knob allows caregivers to select left turn or right turn. The mattress can assist patient turning up to approximately 45°, and the turning process takes about 35 minutes. For facilities comparing an alternating pressure mattress for bedsores, this turning support helps reduce manual repositioning workload and improves daily care efficiency.

Back-Up Positioning for Daily Nursing

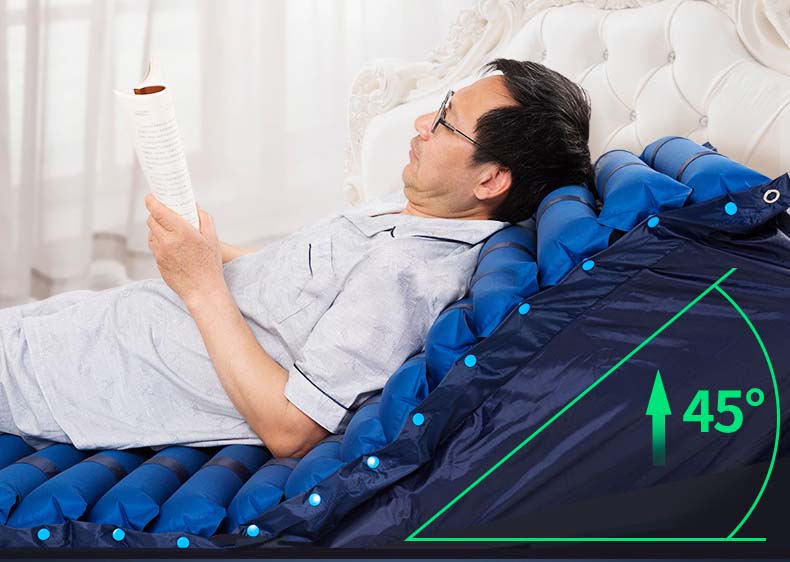

The back-up function slowly lifts the patient’s upper body to about 45° in approximately 35 minutes. This position can support feeding, communication, breathing comfort, observation, and routine bedside care. Compared with a basic air mattress for bed sores, this model provides more complete daily nursing assistance.

Static Mode for Special Care Needs

Static mode keeps the mattress in a stable support condition without wave movement. According to the product guidance, fracture or post-fracture patients should not use wave, turning, or back-up functions; only static support may be considered under professional medical supervision.

01/05

Specifications

Parameter	Specification
Product Name	VU-AMP01 Compact Rotary Pump Anti-Bedsore Air Mattress System
Certification	CE, FDA
Pump Model	VU-AMP01
Mattress Size	200 cm × 90 cm
Pump Size	24 × 19.8 × 11.2 cm
Power Consumption	45W
Pressure Range	20–120 mmHg adjustable
Air Cell Quantity	22 inflatable air cells
Mattress Material	Thickened durable PVC
Working Modes	Wave/static, turn left, turn right, back up, lie down
Inflation Time	About 15–20 minutes
Turning Angle	Approximately 45°
Back-Up Angle	Approximately 45°
Positioning Time	About 35 minutes
Suitable Patient Weight	≤135 kg
Working Environment	5–40℃, RH ≤80%, 70–106 kPa
Power Supply Options	AC220V/50Hz, AC110V/60Hz, AC220V/60Hz

Pump, Material & User-Centered Design

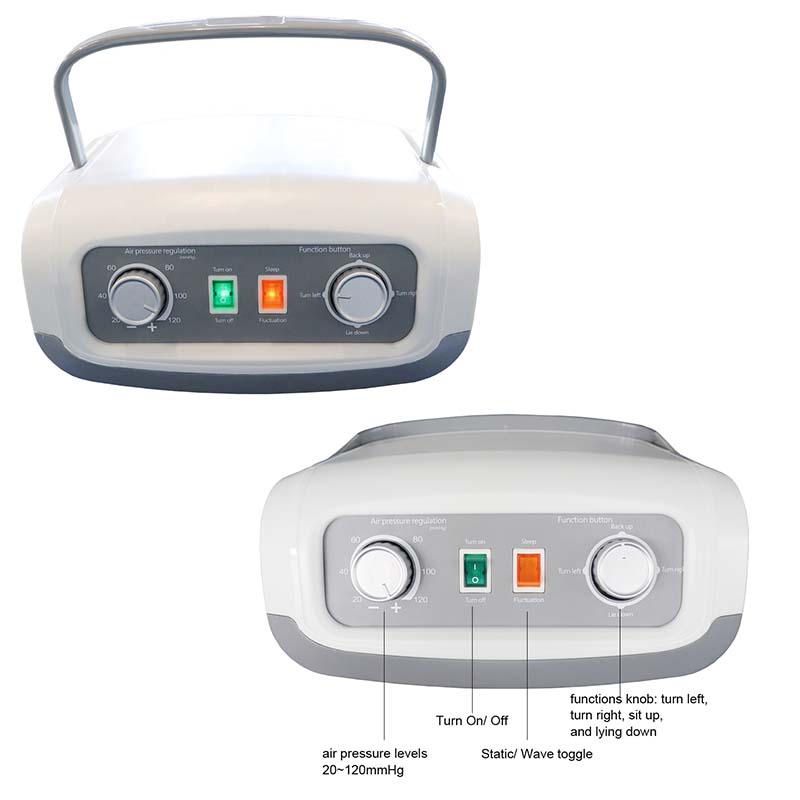

Rotary Dial Pressure Control

The pump adopts a direct rotary pressure regulation dial. Caregivers can turn clockwise to increase firmness or counterclockwise to reduce pressure. This makes VU-AMP01 suitable as an alternating air mattress for facilities that value simple training and quick daily operation.

22 Independent Air Cells

The mattress contains 22 inflatable air cells that support body weight and help distribute pressure. This structure allows the product to serve as an air mattress for pressure sores in long-term care settings where patients require consistent pressure management.

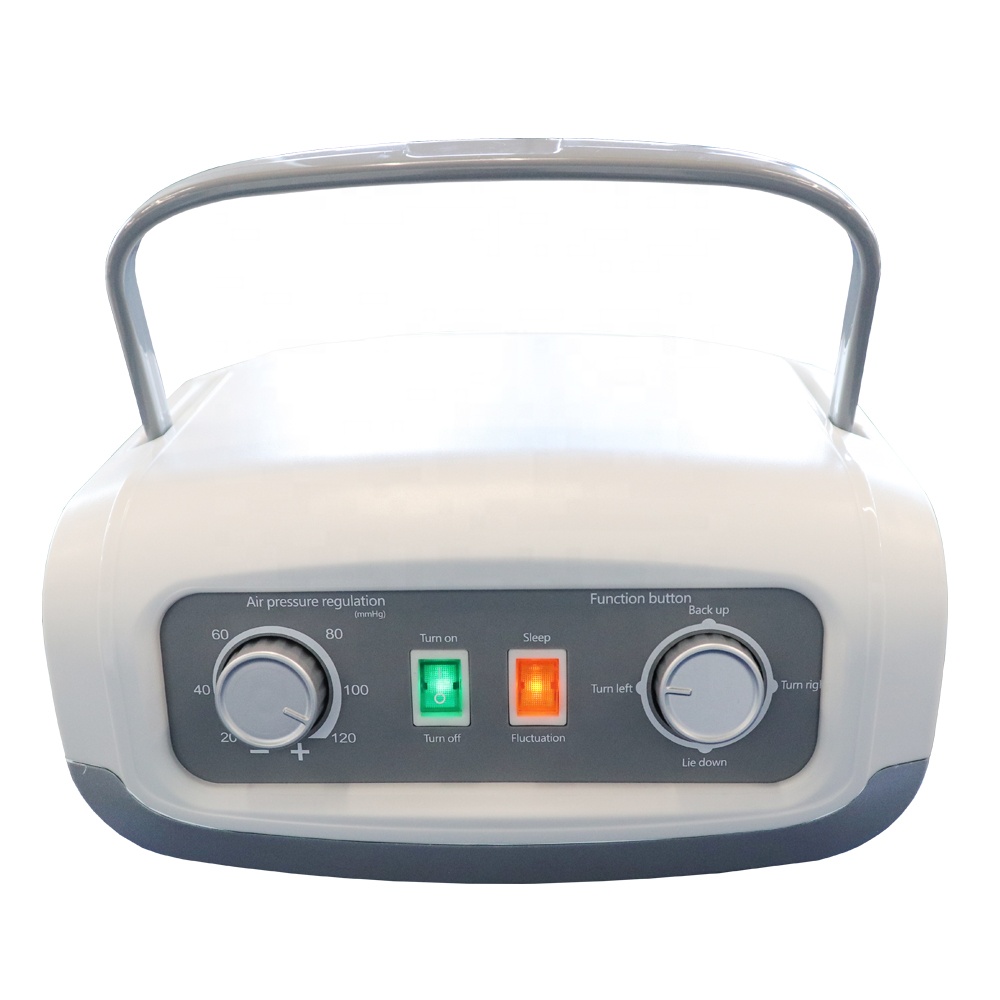

Compact 45W Air Pump

The pump is compact, lightweight, and easy to place beside the bed, under the bed, or near a care station. For buyers comparing a hospital bed pressure mattress, the smaller pump size helps simplify installation and improve bedside space efficiency.

Durable PVC Mattress Surface

The thickened PVC surface is designed for repeated use and easy cleaning. It can be wiped with a dry or damp cloth and neutral detergent. Buyers comparing an alternating low air loss mattress can consider VU-AMP01 when they need a tubular pressure relief system with lower maintenance complexity.

Safety, Compliance & Maintenance

Patient Weight and Pressure Limit

Patients over 135 kg should not use this product. Do not exceed the maximum pressure range to avoid air-cell damage or bursting risk. When used as an air mattress for pressure ulcers, pressure should be adjusted according to patient comfort, caregiver assessment, or medical advice.

Tube Inspection and Function Monitoring

If air cells do not inflate during turning or back-up operation, caregivers should check whether the air tube is pressed, blocked, or detached. When used as an alternating pressure mattress for bedsores, routine inspection helps maintain stable operation and patient safety.

Cleaning and Storage

Turn off the pump before cleaning. Do not wash the pump or mattress directly. Keep the product away from acid, alkali, direct sunlight, and heat sources. If the product is stored for a long time, release the air, fold the mattress properly, and keep it in a dry, ventilated place. This helps maintain long-term performance for the air mattress for bed sores market.

Partnership & Support Services

Flexible MOQ and Customization

Regular stock is available from 1 unit MOQ, suitable for samples, distributor testing, and small medical facility orders. Customized orders start from 100 units, including logo, packaging, plug type, labeling, carton design, and documentation for buyers sourcing an alternating air pressure mattress.

Manufacturer Supply Capability

As a direct manufacturer, we support medical importers, rehabilitation equipment distributors, nursing home suppliers, and home care brands with stable supply, product documents, and configuration guidance.

Warranty and Online Technical Support

Each unit includes 1-year warranty and online technical support for installation, operation, troubleshooting, and after-sales communication. This supports distributors expanding the alternating low air loss mattress category with a cost-effective rotary-control solution.
