CM-AHB-3MA Electric Anti-Bedsore Hospital Nursing Bed

Innovative Mechanical Piano-Key Technology for Superior Patient Comfort and Circulation

View Compliance Docs
Overview
The CM-AHB-3MA moves beyond traditional, failure-prone air mattresses by incorporating an innovative mechanical "piano key" structure. This system uses a series of mountain-shaped panels that perform subtle, alternating vertical movements. This action continuously shifts pressure points across the patient's back, preventing the prolonged compression that leads to tissue ischemia and the formation of pressure ulcers. It is a reliable, non-powered mechanical solution for continuous, proactive care.
cm ahb 3ma electric anti bedsore hospital nursing bed-5
Effective pressure injury prevention requires more than just pressure redistribution; it demands proper microclimate control. The gentle, rhythmic motion of the piano-key surface promotes air circulation between the patient's body and the bed. This helps manage heat and moisture, two critical factors in skin breakdown. Furthermore, the subtle movement acts as a passive massage, stimulating blood flow and improving overall circulation for bedridden patients, a key benefit for any high-quality care home beds.
CM-AHB-3MA Electric Anti-Bedsore Hospital Nursing Bed
The CM-AHB-3MA is engineered for versatility. Its robust construction and advanced features make it an ideal patient bed for clinic examination rooms, hospital wards, and ICU recovery areas. Simultaneously, its focus on comfort and safety makes it a top choice for long-term facilities. Whether for acute care or extended stays, it delivers the therapeutic benefits needed to improve patient outcomes, setting a new standard for nursing home beds and rehabilitation centers alike.
cm ahb 3ma electric anti bedsore hospital nursing bed-7

Clinical Applications & Therapeutic Benefits

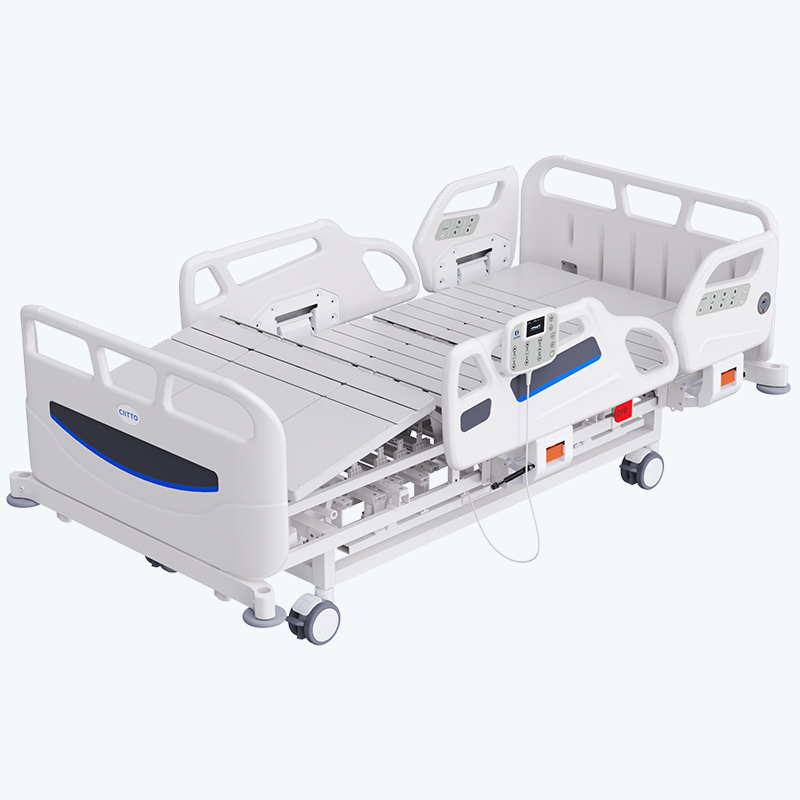

Mechanical Piano-Key Anti-Bedsore Technology & Pressure Relief

Utilizing a patented mechanical piano-key movement, the bed platform alternates contact points against the body to generate active airflow and promote capillary circulation. This continuous "people do not move, let the bed move" technology eliminates static pressure points, preventing pressure ulcers for bedridden patients in a way that far exceeds standard care home beds equipped with traditional inflatable air pads.

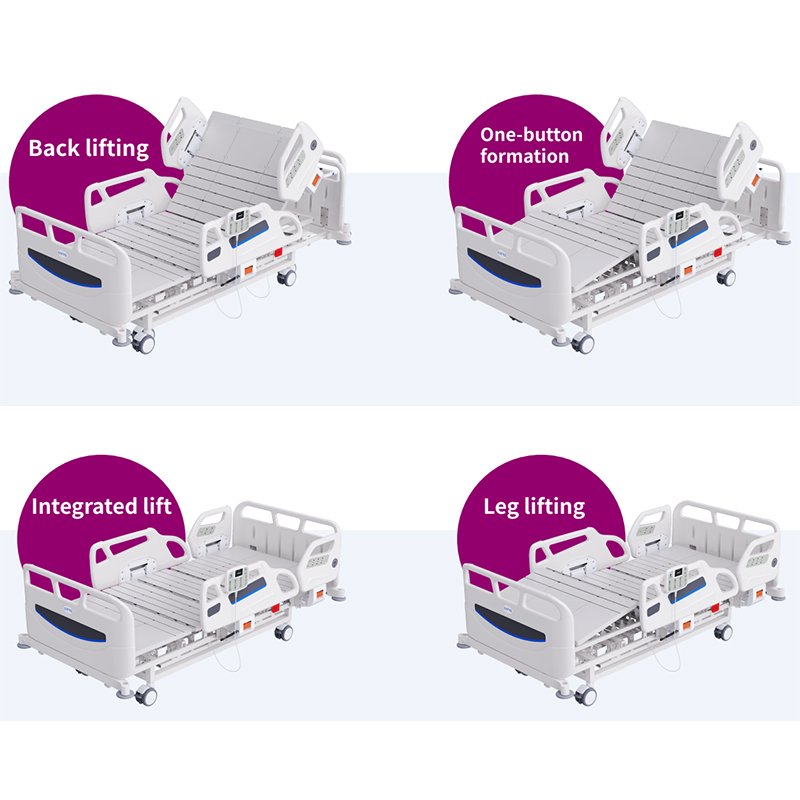

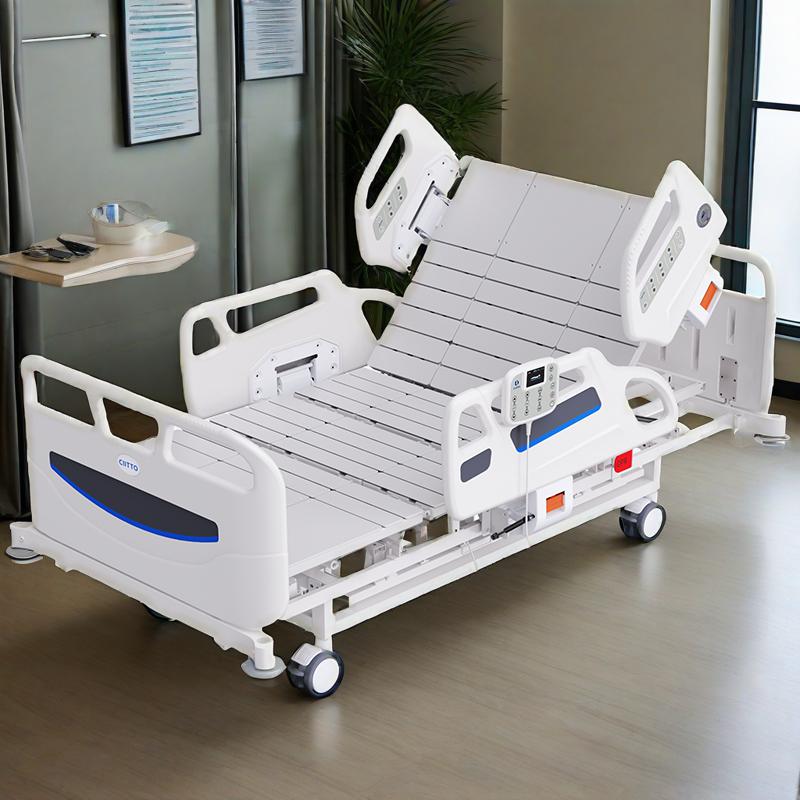

Precision Motorized Positioning & Comprehensive Articulation

Featuring robust electric actuator motors, the CM-AHB-3MA allows precise adjustments including back lifting up to 70°, leg flexing up to 32°, and Trendelenburg / Reverse Trendelenburg tilting ≥ 12°. This anatomical articulation supports therapeutic positioning, improves respiratory drainage, and eases meal times, making it an ideal patient bed for clinic recovery rooms and post-operative care units.

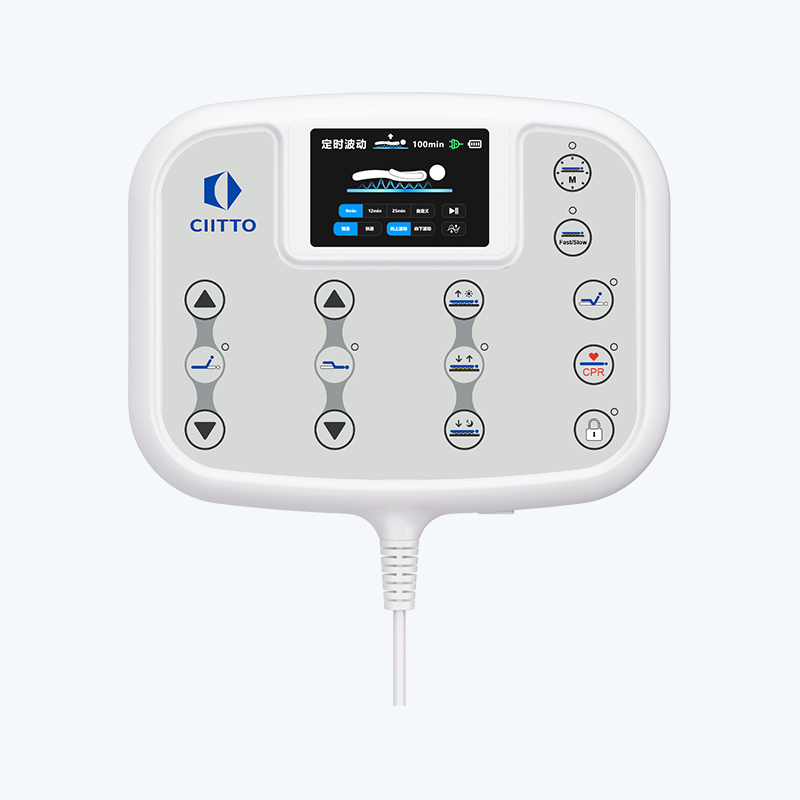

Ergonomic Nurse Station Controller & Visual UI Display

The unit includes an advanced 11-button Nurse Stand hand controller equipped with a 3.5-inch color display. Staff can easily configure custom timing fluctuation cycles (fast/slow, upward/downward) and lock bed functions. This intuitive operation simplifies daily care routines across high-occupancy nursing home beds, reducing caregiver physical fatigue and operational errors.

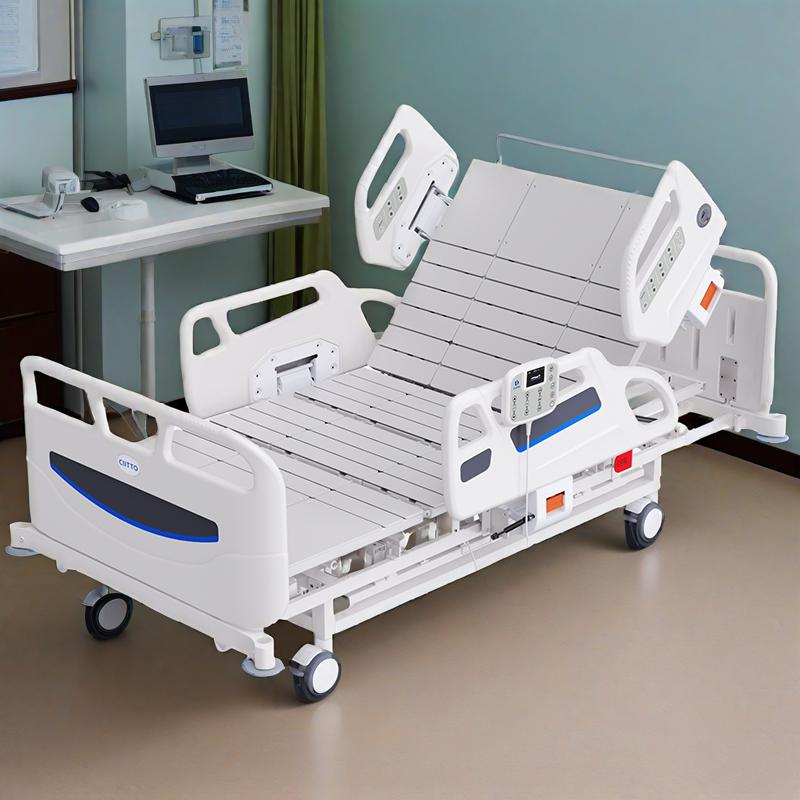

Integrated Emergency Safety, One-Click CPR & Night Illumination

Engineered for critical moments, the bed features a manual/electric CPR mechanism that flattens the frame instantly for emergency resuscitation. Integrated LED night lamps illuminate the patient entry and exit zone to prevent nighttime falls, while dual-sided membrane control buttons allow residents of care home beds to adjust their own comfort safely.

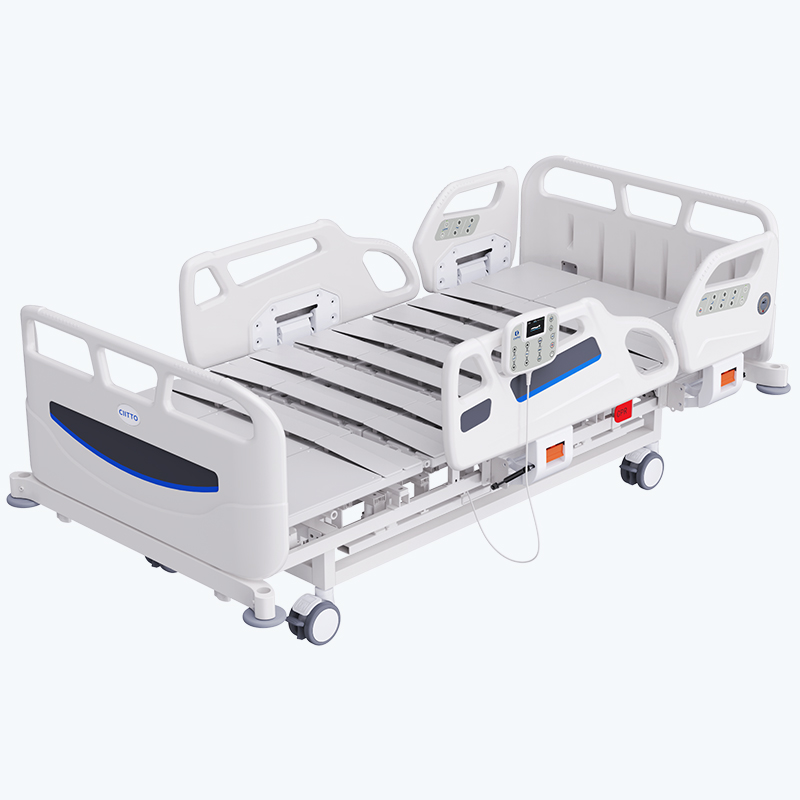

Seamless Blow-Molded HDPE Construction & Hygiene Control

Constructed with premium seamless HDPE material via one-step blow molding, the frame surface is non-porous, dirt-resistant, and tolerant to harsh hospital-grade chemical disinfectants. This seamless hygiene barrier makes it a superior patient bed for clinic environments where strict infection control and rapid turnover sanitation are paramount.

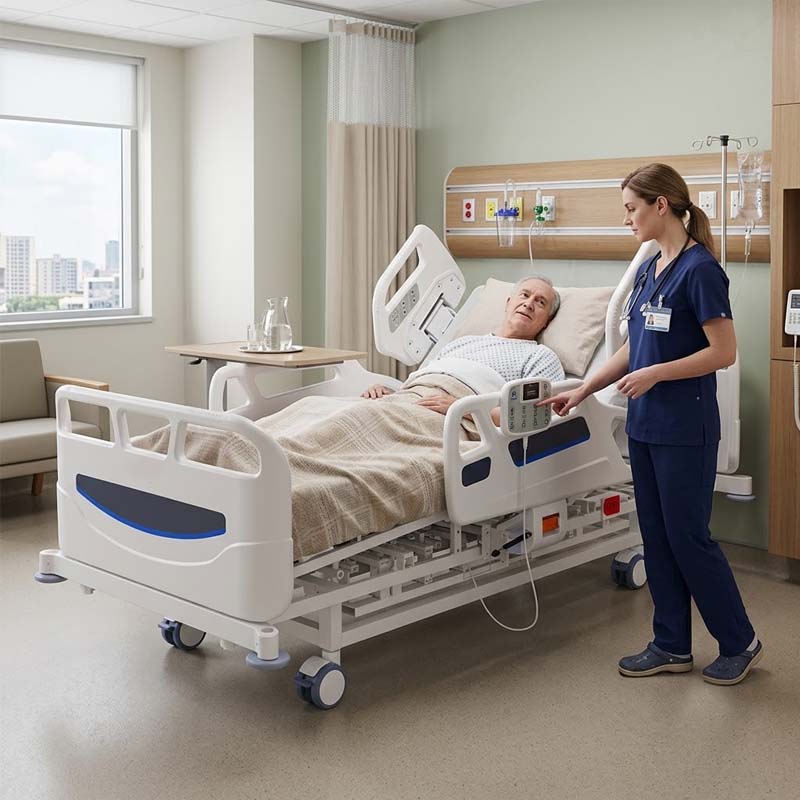

Silent Mobility, Backup Battery & All-Around Chassis Security

Equipped with double-sided corrosion-resistant mute casters and a central braking system, the trolley glides silently without disturbing resting patients. The built-in backup battery guarantees full reset functionality during power outages, ensuring continuous protection for residents resting in nursing home beds.
Mechanical Piano-Key Anti-Bedsore Technology & Pressure Relief
Precision Motorized Positioning & Comprehensive Articulation
Ergonomic Nurse Station Controller & Visual UI Display
Integrated Emergency Safety, One-Click CPR & Night Illumination
Seamless Blow-Molded HDPE Construction & Hygiene Control
Silent Mobility, Backup Battery & All-Around Chassis Security
01/06

Specifications

Parameter

Specification

Model

CM-AHB-3MA

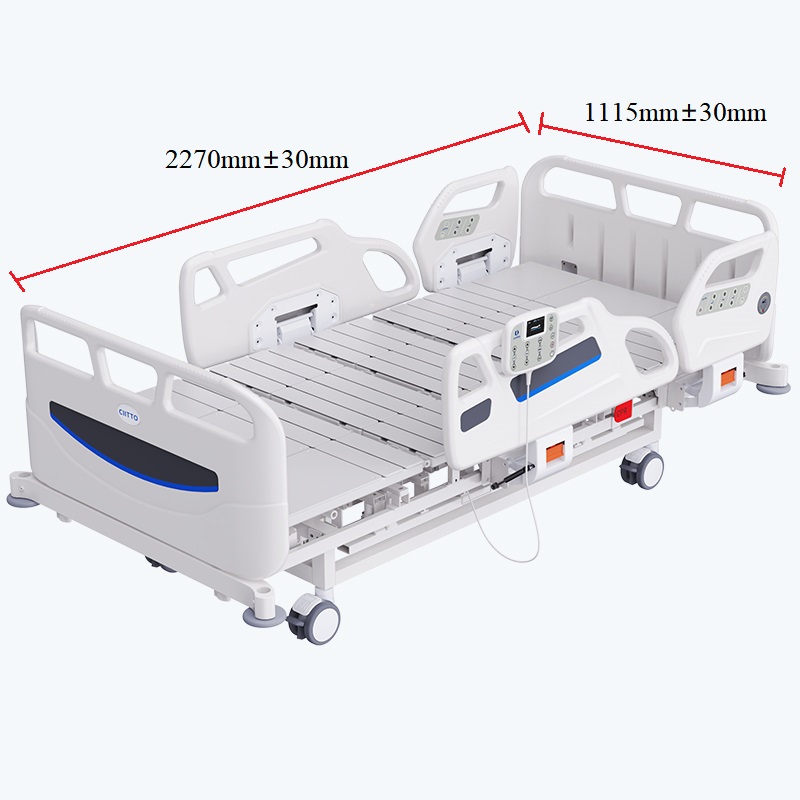

Overall Dimensions (L x W)

2270 x 1115 mm (±30mm)

Bed Surface Dimensions (L x W)

1995 x 930 mm (±30mm)

Bed Surface Height

500 mm (±30mm)

Backrest Angle Range

0 ~ 70° (±3°)

Thigh Plate Angle Range

0 ~ 32°

Calf Plate Angle Range

0 ~ 12° (±3°)

Guardrail Type

Four-piece HDPE Blow-Molded

Safe Working Load

200 kg

Power Failure Backup

Battery

Key Features

Electric Remote, Nurse Control, CPR, Night Lamp, Infusion Socket

Applications and Support

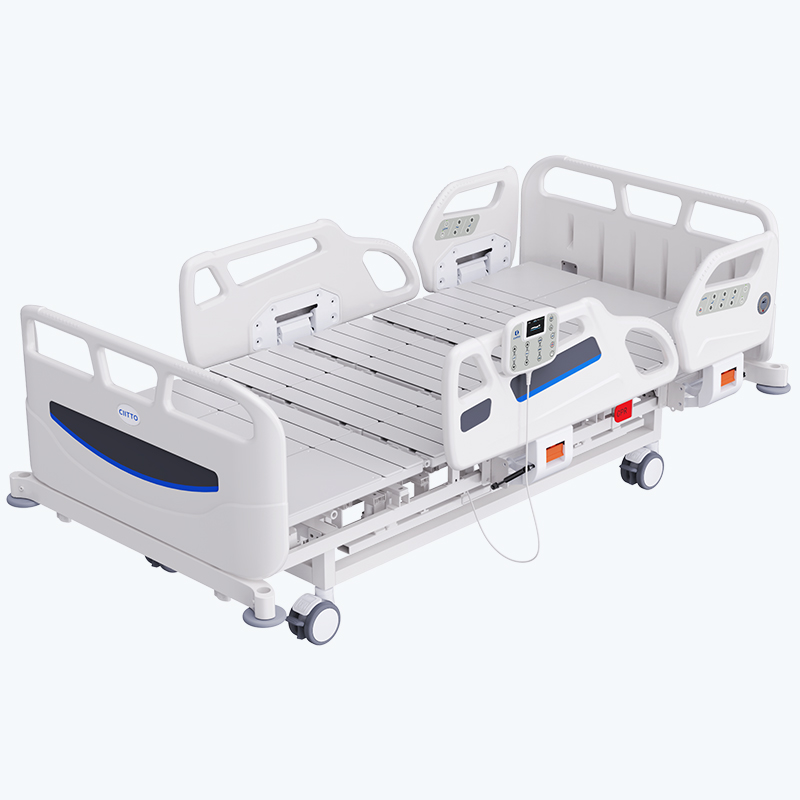

Regulatory Approvals & Global Compliance

Regulatory Approvals & Global Compliance

The CM-AHB-3MA is manufactured in compliance with rigorous international standards, including IEC-60601-2-52 for the safety of hospital beds and the ISO 13485 medical device quality management system. We provide comprehensive technical documentation and test reports to facilitate smooth customs clearance and regulatory registration, ensuring a hassle-free procurement process for global distributors of care home beds.
B2B Procurement Flexibility & OEM/ODM Support

B2B Procurement Flexibility & OEM/ODM Support

We offer flexible procurement models tailored for hospitals, clinic chains, and government tenders. Our scalable OEM/ODM services allow for deep customization on bulk orders of nursing home beds, including custom frame colors, localized user interface languages, bespoke packaging, and private label branding to meet your specific market requirements.
Continuous Operational Reliability & Easy Maintenance

Continuous Operational Reliability & Easy Maintenance

Engineered for 24/7 clinical use, the CM-AHB-3MA features a heavy-duty motor system and a real-time battery backup indicator. The seamless, one-piece HDPE guardrails and bed structure are resistant to corrosion and easy to clean, allowing for rapid disinfection between patients—a critical feature when the bed is used as a patient bed for clinic wards with high turnover.
Comprehensive Warranty & Support Services

Comprehensive Warranty & Support Services

We stand behind our product with a 1-year comprehensive warranty. Our support package includes rapid spare parts replacement via express courier, 24/7 multilingual technical support, access to online operational video guides, and a library of high-resolution marketing assets to help you sell and support these advanced care home beds effectively.
